Description

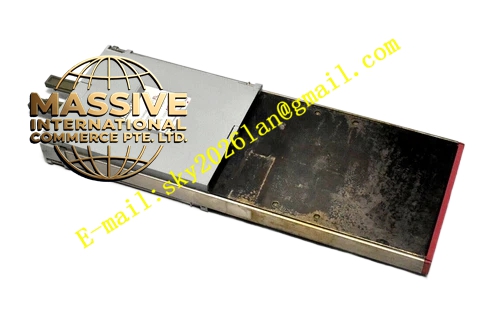

Foxboro FBM01
Technical Specifications
- Hardware Code: P0400DA
- Input Type: 0-20 mA DC Analog Input
- Input Channels: 8 independent, isolated channels
- Communication Protocol: Redundant 2 Mbps Module Fieldbus
Key Features
- High-Accuracy Acquisition: Features precision signal conditioning and A/D conversion for reliable measurement of critical process variables.
- Channel Isolation: Each input channel is electrically isolated, ensuring high noise immunity and safety.
- Hot-Swappable Maintenance: Allows for safe, online module replacement without disrupting field wiring.
- Integrated Diagnostics: Features comprehensive channel diagnostics for sensor failure detection.
Application Scenarios
Extensively used in chemical, pharmaceutical, and power industries for accurate measurement of temperature, pressure, flow, and level via 4-20 mA transmitters.
Performance Parameters
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -40°C to 85°C
- Power Supply: 24 VDC via backplane
- Protection Rating: IP20
Material Composition
Constructed with durable, flame-retardant industrial plastics and conformal-coated electronics for maximum environmental protection.
Structural Characteristics
Single-width 200 Series FBM form factor. Interfaces with the backplane via precision pins and connects to field transmitters through a specific Terminal Assembly.
Operating Principle
Receives analog current signals from field transmitters, conditions the signal, converts it to a digital value using high-precision A/D converters, and transmits the data to the controller over the redundant Module Fieldbus.
Installation Requirements
Mount on a compatible 200 Series baseplate. Ensure the control cabinet is well-ventilated and properly grounded. Use shielded twisted-pair cables for analog wiring to prevent noise interference.
Usage Precautions
Ensure the field transmitter output matches the module’s specified 0-20 mA input range. Avoid routing analog cables parallel to high-voltage power lines. Always observe standard ESD precautions during handling.
