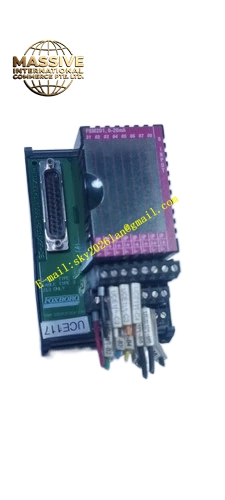

Foxboro FBM13 PM400YP
Technical Specifications
- Module Type: Fieldbus Module (FBM13).
- Commercial Part Number: PM400YP.
- Bus Interface: 2 Mbps Redundant HDLC Fieldbus.
- Signal Types: Configurable for analog or discrete I/O.
Functional Features
- Signal Integrity: High-precision A/D and D/A conversion for accurate process control.
- Galvanic Isolation: Channel-to-channel and channel-to-bus isolation to prevent ground loops.
- Diagnostic Reporting: Real-time communication of module health and channel status.
- Hot-Swap Capability: Supports module replacement without system shutdown (system dependent).
Application Scenarios
Used in process control panels for connecting transmitters, valves, and switches in oil, gas, chemical, and water treatment facilities.
Performance Parameters
- Accuracy: Typically ±0.1% of span.
- Response Time: Fast update rates for real-time control.
- Environmental Rating: G3 Harsh Environment certified.
Material Composition
Industrial-grade PCB with conformal coating. Durable housing with high-quality terminal blocks.
Structural Characteristics
Standard FBM form factor with front-panel LEDs for channel status. Clear silkscreen labeling for wiring identification.
Working Principle
Converts analog field signals to digital data for the fieldbus and converts digital control outputs to analog signals, while providing isolation and power management.
Installation Requirements
Mount on a compatible baseplate. Use shielded twisted-pair cabling for field connections.
Usage Precautions
Verify signal type and range configuration in software before connecting field devices. Do not exceed maximum load ratings.
