Description

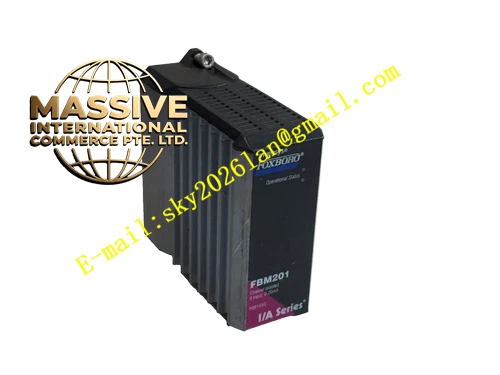

Foxboro FBM201C P0922YJ
Technical Specifications
- Module Type: Analog Input Module
- Input Capacity: 8 isolated channels
- Input Range: 0 to 5 V DC
- Bus Interface: Foxboro Module Fieldbus
Functional Features
- Voltage Signal Acquisition: Optimized for 0-5V DC industrial signals.
- Channel Isolation: Provides galvanic isolation for each channel.
- High-Precision Conversion: Utilizes Σ-Δ ADCs for accurate measurement.
- Hot-Swappable Maintenance: Enables safe online replacement.
Application Scenarios
Deployed for position feedback sensors, valve positioners, and voltage-output process transmitters in manufacturing and process control.
Performance Parameters
- Operating Temperature: -40℃ to +70℃
- Power Dissipation: 3W maximum
- Ingress Protection: IP20
Material Composition
Features precision analog circuitry with conformal-coated PCBs in a durable industrial enclosure.
Structural Characteristics
Standard 200 Series FBM form factor. Connects to field devices via a dedicated TA.
Working Principle
Voltage signals are conditioned, isolated, and digitized. The module communicates with the controller via the Module Fieldbus.
Installation Requirements
Install on a 200 Series baseplate. Ensure proper wiring polarity and use shielded cables for noise immunity.
Usage Precautions
Do not apply voltages exceeding 5V DC. Verify input configuration in the control software. No calibration required.
