Description

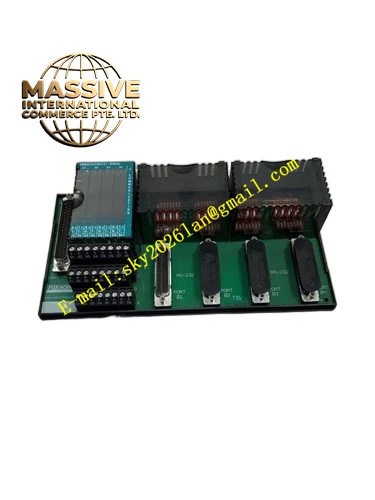

Foxboro FBM220 P0917HA
Technical Specifications
- Interface Type: 1-Channel H1 FOUNDATION Fieldbus
- Hardware Code: P0917HA
- Communication Protocol: Redundant 2 Mbps Module Fieldbus (to controller) / H1 Fieldbus (to field)
- Baseplate Compatibility: Foxboro 200 Series standard baseplate
Key Features
- Single-Segment Gateway: Provides a dedicated communication path for one H1 fieldbus segment, ensuring optimal bandwidth allocation.
- Bidirectional Smart Communication: Supports full-duplex digital communication, allowing for real-time control, parameter configuration, and advanced device diagnostics.
- Hot-Swappable Maintenance: Allows for safe online module replacement, minimizing process disruption during maintenance.
- Integrated Diagnostics: Features comprehensive bus status monitoring to quickly report communication timeouts, device dropouts, or bus shorts.
Application Scenarios
Widely deployed in highly automated modern process industries, such as large-scale petrochemical plants and refineries, to connect smart transmitters, valve positioners, and remote I/O stations.
Performance Parameters
- Operating Temperature: 0°C to 60°C
- Protection Rating: IP20
- Power Supply: 24 VDC backplane supply
- Communication Rate: Complies with IEC 61158-2 standard
Material Composition
Constructed with high-reliability industrial-grade components. The internal circuitry undergoes strict Electromagnetic Compatibility (EMC) design and protective treatment to ensure stable communication in complex industrial environments.
Structural Characteristics
Standard 200 Series FBM single-width form factor. Features a compact design for high-density installation and includes clear channel communication status indicators on the front panel for rapid field diagnostics.
Operating Principle
The module acts as a communication gateway between the I/A Series controller and the FF H1 fieldbus network. It converts the controller’s high-speed parallel data into FF H1 serial communication protocols, facilitating bidirectional digital data exchange and device management.
Installation Requirements
Must be installed on a 200 Series baseplate. FF H1 bus wiring must strictly adhere to cabling specifications, utilizing dedicated shielded twisted-pair cables and avoiding excessively long T-spurs.
Usage Precautions
When configuring, ensure the correct baud rate and termination resistance are set for the bus segment. Verify that the bus power supply voltage and current remain within safe operating limits. Never mix FF H1 bus cables with standard analog signal cables.
