The FBM222 is a high-performance, redundant communication module designed to seamlessly integrate PROFIBUS-DP and PROFIBUS-PA slave devices into the Foxboro Evo control system. It serves as a critical interface for connecting motor drives, field I/O devices, and third-party equipment, ensuring uninterrupted data transmission in critical industrial applications.

Request Quote
Category:

Description

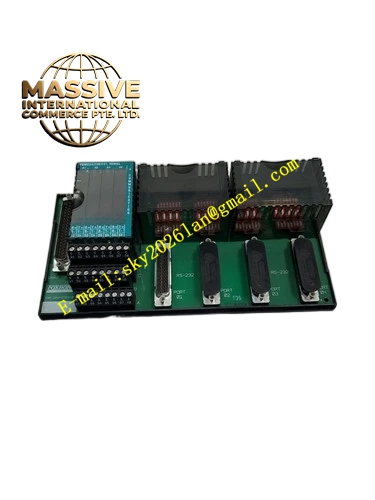

Foxboro FBM222

Technical Specifications

  • Communication Protocol: PROFIBUS DP v1, supporting Class 1 Masters and multi-host configurations.
  • Data Transfer Rate: High-speed data transfer up to 12 Mbps.
  • Device Capacity: Supports up to 125 slave devices per port, with a maximum data payload of 244 bytes per device.
  • Operating Voltage: 24 VDC.
  • Connection Type: RS-485 physical interface.

Functional Features

  • Full Redundancy: Provides redundant Termination Assemblies (TAs), hot-swappable FBM modules, and fully redundant communication paths to maximize system uptime.
  • Online Maintenance: Allows operators to add, modify, or delete devices without disrupting ongoing operations.
  • State Propagation: Effectively propagates PROFIBUS-PA device values and states directly to Foxboro Evo control blocks.
  • Isolated Channels: Features two electrically isolated PROFIBUS channels for enhanced safety and noise immunity.

Application Scenarios
Widely utilized in manufacturing, process control, and automation industries where reliable, fault-tolerant PROFIBUS communication is paramount for operational safety and efficiency.

Performance Parameters

  • Power Consumption: Maximum 1 W.
  • Operating Temperature: -20°C to +60°C.
  • Storage Temperature: -40°C to +85°C.

Material Composition
Housed in a sturdy enclosure rated IP20, providing essential protection against dust and environmental contaminants typical in industrial control panels.

Structural Characteristics

  • Dimensions: Compact form factor measuring 96 mm x 96 mm x 100 mm.
  • Weight: Lightweight at 200 g for easy handling.
  • Mounting: Designed for standard DIN rail or rack mounting.

Working Principle
The FBM222 acts as a PROFIBUS master, actively polling connected slave devices over the redundant RS-485 network. It translates the PROFIBUS data into the Foxboro Distributed Control Interface (DCI) format, allowing the FCP to process the field data seamlessly.

Installation Requirements

  • Must be paired with the appropriate FBMSVH or FBM223 Termination Assembly (TA).
  • Requires proper termination resistors on the PROFIBUS network ends.
  • Must be installed in environments complying with Zone 2 hazardous area classifications.

Precautions for Use

  • Ensure the PROFIBUS network is properly grounded to prevent ground loops.
  • Do not disconnect redundant communication cables while the system is in operation.
  • Verify baud rate and device address configurations before commissioning.
