Description

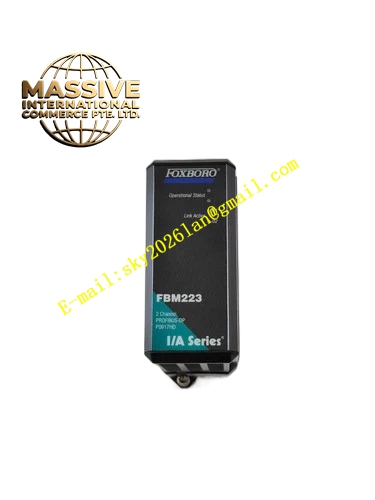

Foxboro FBM223 P0917HD
Technical Specifications
- Interface Type: 2-Channel PROFIBUS-DP
- Hardware Code: P0917HD
- Communication Protocol: Redundant 2 Mbps Module Fieldbus / PROFIBUS-DP
- Baseplate Compatibility: Foxboro 200 Series standard baseplate
Key Features
- Third-Party Integration: Facilitates easy integration of third-party PLCs, drives, and smart sensors using the widely adopted PROFIBUS-DP standard.
- Dual-Channel Design: Offers two independent DP channels for flexible network topology and increased device capacity.
- Hot-Swappable Maintenance: Allows for online module replacement without disrupting the overall control node.
- Integrated Diagnostics: Monitors PROFIBUS bus health, reporting token passing errors, station dropouts, and cable faults.
Application Scenarios
Extensively used in manufacturing, packaging lines, and process plants to integrate third-party motor drives, remote I/O racks, and specialized analytical instruments into the central DCS.
Performance Parameters
- Operating Temperature: 0°C to 60°C
- Protection Rating: IP20
- Power Supply: 24 VDC backplane supply
- Communication Rate: Supports standard PROFIBUS-DP baud rates up to 12 Mbps
Material Composition
Constructed with high-reliability industrial-grade components, featuring strict EMC design and protective coatings for stable operation in noisy environments.
Structural Characteristics
Standard 200 Series FBM single-width form factor. Includes clear channel status LEDs and utilizes a designated Terminal Assembly for field connections.
Operating Principle
Acts as a PROFIBUS-DP Master, translating control commands from the I/A Series controller into PROFIBUS-DP telegrams. It cyclically polls slave devices and updates the DCS database with process data.
Installation Requirements
Mount on a compatible 200 Series baseplate. PROFIBUS-DP cabling must use standard A-type cables with proper termination and biasing at both ends of the bus.
Usage Precautions
Ensure unique PROFIBUS station addresses are assigned to all connected slave devices. Verify that the configured baud rate matches the physical network settings. Strictly adhere to ESD handling procedures.
