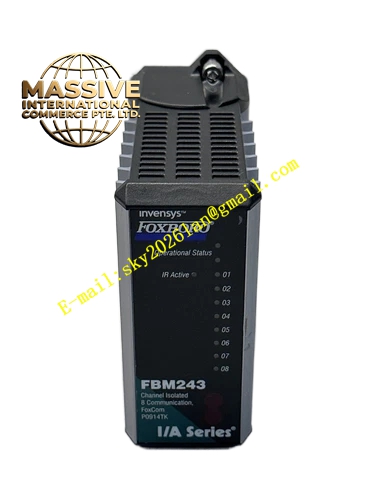

Foxboro FBM243 P0914TK
Application Scenarios
Extensively deployed in process automation environments requiring the integration of Foxboro smart transmitters and actuators, enabling advanced device management, predictive maintenance, and multi-variable monitoring.
Performance Parameters
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -40°C to 85°C
- Protection Rating: IP20
- Power Supply: 24 VDC via backplane
Material Composition
Housed in a rugged extruded aluminum enclosure that provides physical protection and electromagnetic shielding. The internal circuitry is conformal-coated to withstand harsh industrial environments up to ISA standard S71.04.
Structural Characteristics
Standard 200 Series FBM single-width form factor. The front panel is equipped with Light Emitting Diodes (LEDs) to visually indicate module operating status and input channel communication activity.
Operating Principle
The module communicates with the Field Control Processor (FCP) via the redundant 2 Mbps Module Fieldbus. It accepts communication from either Path A or Path B. If one path fails, it seamlessly continues communicating via the active path, extracting and formatting smart device data for the control system.
Installation Requirements
Must be mounted on a compatible Foxboro 200 Series baseplate. Field wiring connects to the module via a dedicated Terminal Assembly (TA), supporting both intrinsically safe and non-intrinsically safe applications.
Usage Precautions
When multiple loops share an external power supply, a cable balancing module is required to maintain digital communication line balance. Strictly observe ESD handling procedures during installation and maintenance.
