Description

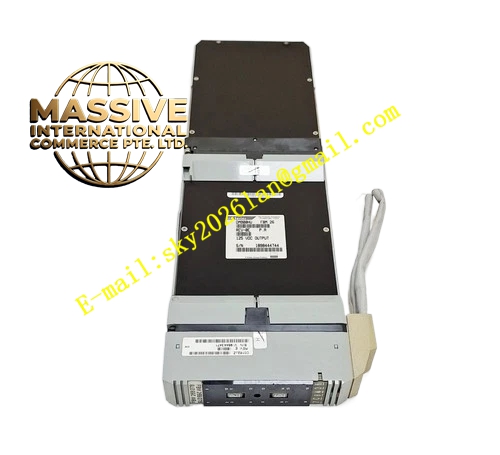

Foxboro FBM26 DM900HU
Technical Specifications
- Hardware Code: DM900HU
- Output Type: Discrete (Digital) Output
- Output Channels: Multiple isolated channels
- Communication Protocol: Redundant 2 Mbps Module Fieldbus
Key Features
- Reliable Switching: Provides robust, isolated switching capabilities for driving various field loads.
- Channel Isolation: Each output channel is electrically isolated, preventing ground loops and ensuring safe operation.
- Hot-Swappable Maintenance: Allows for safe, online module replacement without disrupting field wiring.
- Integrated Diagnostics: Features comprehensive channel diagnostics for output fault detection and status monitoring.
Application Scenarios
Extensively used in manufacturing, power plants, and process industries for controlling actuators, alarms, and equipment status indicators.
Performance Parameters
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -40°C to 85°C
- Power Supply: 24 VDC via backplane
- Protection Rating: IP20
Material Composition
Constructed with durable, flame-retardant industrial plastics and conformal-coated electronics for maximum environmental protection.
Structural Characteristics
Single-width 200 Series FBM form factor. Interfaces with the backplane via precision pins and connects to field devices through a specific Terminal Assembly.
Operating Principle
Receives digital control commands from the controller over the redundant Module Fieldbus. It isolates the command and drives the corresponding output channel to energize or de-energize the connected field load.
Installation Requirements
Mount on a compatible 200 Series baseplate. Ensure the control cabinet is well-ventilated and properly grounded. Verify that the field load voltage and current ratings do not exceed module specifications.
Usage Precautions
Ensure the field load voltage matches the module’s specified output range. Always observe standard ESD precautions during handling. Never exceed the maximum current rating per channel or per module.
