Description

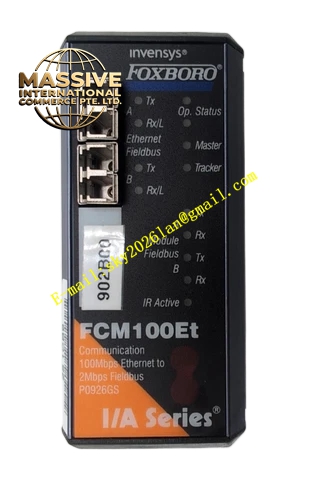

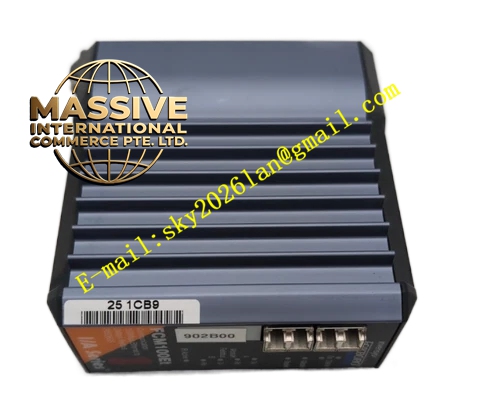

Foxboro FCM100E
Technical Specifications
- Communication Rate: 2 Mbps redundant fieldbus.
- Connection Capacity: Supports connection of multiple FBM modules.
- Redundant Architecture: Dual-path A/B redundant communication.
- Interface Type: Dedicated fieldbus interface.
Functional Features
- Seamless Redundancy: Automatically switches to the backup path without disruption upon primary communication path failure.
- High Throughput: Supports high-speed data polling and transmission for numerous FBM modules.
- Diagnostic Function: Real-time monitoring of bus load, communication quality, and node status.
- Hot-Swappable: Supports online maintenance and replacement.
Application Scenarios
Serves as the core component of Foxboro I/A system control stations, applied in all industrial processes requiring field I/O data acquisition and control.
Performance Parameters
- Switching Time: Millisecond-level redundant switching with no impact on upper-level control.
- Bus Utilization: Optimized communication protocol ensures low latency and high real-time performance.
- Node Capacity: Supports mounting multiple FBMs on a single node with strong expansion capabilities.
Material Composition
Adopts industrial-grade high-density connectors and anti-interference circuit board designs. The housing provides electromagnetic shielding to ensure pure communication signals.
Structural Characteristics
- Backplane Connection: Connects tightly with FBM and power modules via a dedicated backplane.
- Status Panel: Provides clear indicators for communication status, redundancy status, and faults.
- Compact Design: Saves control cabinet space and supports high-density configuration.
Working Principle
Acting as the fieldbus master, the FCM100E sends data requests to each FBM at preset communication cycles. FBMs respond and upload field data, which the FCM100E packages and transmits to the control processor via the system bus. It also receives downstream commands from the controller and distributes them to the corresponding FBMs.
Installation Requirements
- Must be installed in designated control station rack slots.
- Redundant communication cables must be routed independently to avoid interference.
- Ensure backplane connectors are fully inserted and locked.
Usage Precautions
- Strictly prohibited to forcefully remove the communication module while the system is running.
- Regularly inspect the connection status of redundant communication cables.
- Confirm firmware version matches the original module when replacing.
