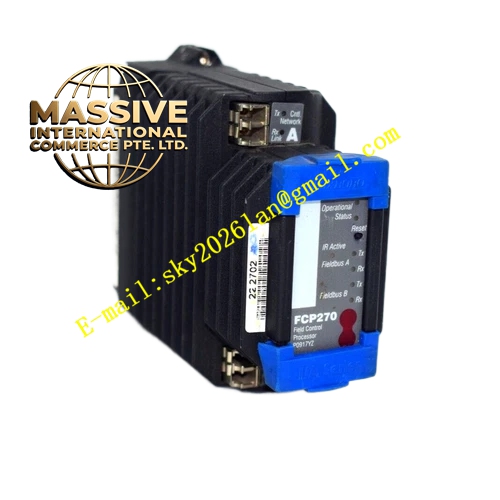

Foxboro FCP270 PO917YZ
Technical Specifications
- Processor: AMD Elan 520 microprocessor at 100 MHz with CommControl ASIC.
- Memory: 16 MB SDRAM and 32 MB Flash.
- I/O Capacity: Supports up to 32 Series 200 FBMs (expandable to 128 with FEM100).
- Control Execution: Up to 10,000 function blocks per second.
Functional Features
- Fault-Tolerant Architecture: Supports dual-processor redundancy for seamless failover.
- Advanced Control: Executes continuous, sequential, ladder logic, and batch control.
- High-Speed Communication: Connects to the Foxboro Evo control network via 100 Mbps fiber optic Ethernet.
- Online Maintenance: Supports hot-swapping and online configuration modifications.
Application Scenarios
Deployed in large petrochemical complexes, power generation plants, and critical infrastructure requiring 99.999% system availability.
Performance Parameters
- Scan Time: Fastest function block processing cycle of 50 ms.
- Failover Time: Less than 100 ms for redundant controllers.
- Operating Temperature: 0°C to 60°C.
Material Composition
Die-cast aluminum enclosure with internal conformal-coated PCBs for harsh environment protection.
Structural Characteristics
- Dual Ethernet Ports: For redundant network connections.
- Status LEDs: Comprehensive diagnostic indicators on the front panel.
Working Principle
The processor continuously scans I/O modules, executes user-defined control algorithms in real-time, updates output states, and synchronizes data across the redundant control network.
Installation Requirements
- Must be installed in a redundant pair for fault tolerance.
- Requires stable 24 VDC redundant power supplies.
Precautions for Use
- Always back up control logic before performing firmware updates.
- Ensure proper grounding of the control cabinet to prevent EMI issues.
