Description

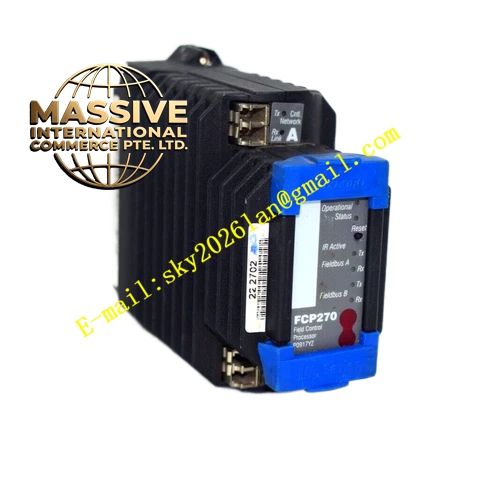

Foxboro FCP270P0917YZ
Technical Specifications
- Part Number: P0917YZ.
- Product Type: Field Control Processor 270.
- CPU: AMD Elan SC520 @ 100 MHz.
- Storage: 32 MB Flash for non-volatile storage of configuration and trends.
Functional Features
- Universal Compatibility: The standard-bearer for the FCP270 line, supporting all standard I/A Series software versions (v8.4-v8.8+) and Foxboro Evo v9.0+.
- Redundancy Ready: Hardware-prepared for 1:1 hot-standby fault-tolerant operation.
- Alarm Management: Dedicated hardware resources for rapid alarm detection and notification.
Application Scenarios
The go-to controller for greenfield projects and brownfield replacements across refining, chemical processing, and utility sectors.
Performance Parameters
- Max Power: 8.5 W.
- Dimensions: 14.7 cm x 5.15 cm x 11.4 cm.
- Weight: 0.6 kg (net).
Material Composition
High-grade die-cast aluminum chassis. Internal PCBs use multi-layer FR4 material with high-Tg ratings for thermal stability.
Structural Characteristics
Features a distinct label with the P0917YZ part number. Includes integrated fiber optic transceiver ports and fieldbus termination options.
Working Principle
Acts as the master node on the local fieldbus segment, polling slave FBMs, executing PID and logic blocks, and synchronizing with the redundant peer (if equipped) via a high-speed backplane or fiber link.
Installation Requirements
Mount vertically or horizontally as per mechanical drawings. Ensure 100 Mbps fiber links are connected to the correct TX/RX ports on the Ethernet switch.
Usage Precautions
Store in anti-static packaging when not installed. Do not apply power if the module shows physical damage or moisture ingress.
