Product Introduction

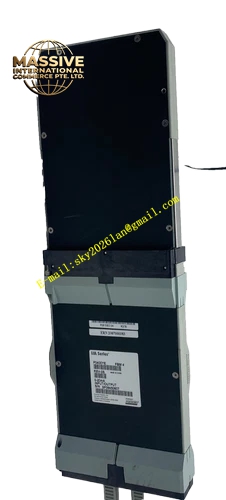

The Foxboro P0400BJ is a dedicated wiring terminal assembly designed for Foxboro FBM (Fieldbus Modules). Serving as the physical interface between field cables and electronic modules, it provides safe and convenient signal connection and transfer, forming a critical component of the field wiring system.

Request Quote
Category:

Description

Foxboro P0400BJ

Technical Specifications

  • Terminal Type: Spring-loaded or screw-type crimp terminals.
  • Wire Gauge Range: Accommodates various industrial control cable specifications.
  • Electrical Ratings: Meets industrial standards for voltage and current carrying capacity.
  • Insulation Material: High flame-retardant, anti-aging engineering plastics.

Functional Features

  • Convenient Wiring: Allows quick connections without tools or with minimal tooling.
  • Foolproof Design: Physical anti-misconnection structures prevent incorrect signal wiring.
  • Clear Labeling: Silk-screened identifiers beside each terminal facilitate maintenance.
  • High Reliability: Vibration and corrosion-resistant, ensuring long-term contact integrity.

Application Scenarios
Used in conjunction with various Foxboro FBM modules for field signal access and distribution within control cabinets.

Performance Parameters

  • Contact Resistance: Extremely low and stable contact resistance.
  • Insulation Resistance: High dielectric strength prevents signal crosstalk.
  • Mechanical Life: Supports multiple plug-in and wiring operations.

Material Composition
Conductive parts are made of premium copper alloy with tin/gold plating. The insulator utilizes PA66 or similar flame-retardant materials, with the base potentially incorporating metal DIN rail mounting components.

Structural Characteristics

  • Modular Splicing: Supports side-by-side installation of multiple terminal groups.
  • Cable Securing: Equipped with cable clamping devices to prevent terminal loosening due to pulling.
  • Test Ports: Certain models provide in-circuit test probe interfaces.

Working Principle
As a passive component, the P0400BJ achieves reliable electrical connection and mechanical fixation between external cables and FBM module pins via internal metal弹片 (spring contacts) or screw pressure.

Installation Requirements

  • Must match the corresponding FBM module model.
  • Wire stripping length must comply with terminal requirements; avoid exposed copper or insulation crimping.
  • Perform a pull test after wiring to ensure a secure connection.

Usage Precautions

  • Strictly prohibit exceeding the terminal’s rated load to prevent overheating and burnout.
  • In corrosive environments, regularly inspect terminals for oxidation.
  • Always disconnect field signal power before replacing the terminal board.
