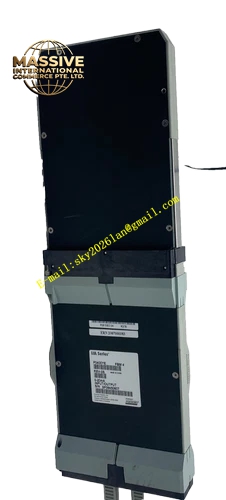

Foxboro P0400YF
Technical Specifications
- Component Model: P0400YF
- System Platform: Foxboro I/A Series DCS
- Function: High-Precision Analog Signal Conditioning and Conversion
- Communication: Standard Industrial Fieldbus Protocols
Functional Features
- Data Integrity Assurance: Employs bit-by-bit matching technology to guarantee accurate data transmission without corruption.
- Flexible Configuration: Adaptable for various analog monitoring applications.
- Software Integration: Seamlessly integrates with Foxboro InTouch and Wonderware System Platform.
- Intelligent Diagnostics: Built-in real-time diagnostics for wire break detection and module health reporting.
Application Scenarios
Used for monitoring high-precision process variables such as pressure, flow, level, and temperature in petrochemical and power generation facilities.
Performance Parameters
- Electrical Isolation: High-impedance isolation between channels and the bus.
- Response Time: Fast analog sampling and update rate.
- Protection Rating: IP20
Material Composition
Industrial-grade flame-retardant housing with high-reliability amplifier circuits. Terminal blocks feature gold or tin-plated copper for reliable conductivity.
Structural Characteristics
Standard fieldbus module design with clear channel labeling and LED indicators. Secure backplane connector ensures tight mechanical and electrical coupling.
Working Principle
Incoming analog signals undergo precision amplification and A/D conversion, transforming physical measurements into digital values before being packaged and transmitted via the redundant fieldbus to the processor.
Installation Requirements
Mount on a compatible FBM baseplate. Use shielded cables with single-point grounding at the cabinet to prevent interference.
Precautions for Use
Strictly differentiate between input terminal definitions. Never apply out-of-range voltages. Disable the node in software before module replacement.
