Description

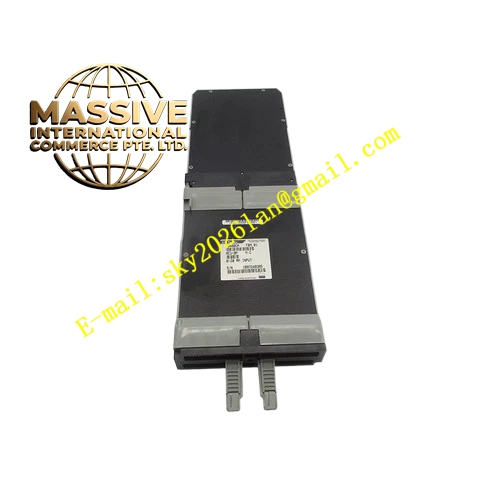

Foxboro P0400YP
Technical Specifications
- Component Model: P0400YP (FBM13)
- Channel Configuration: 16-channel 120VAC AC status input (Expansion)
- Function: Base FBM module expansion component
- Bus Interface: 2 Mbps Redundant HDLC Fieldbus
Functional Features
- Seamless Expansion: Provides additional 120VAC I/O when paired with base FBM modules.
- High-Voltage AC Isolation: Superior channel-to-bus electrical isolation for 120VAC signals.
- High Reliability Verification: Bit-by-bit matching ensures expansion channel data accuracy.
- Smart Diagnostics: Wire break detection and module health reporting.
Application Scenarios
Large-scale AC equipment monitoring, power distribution panels, and high-voltage interlock systems requiring extensive 120VAC I/O points.
Performance Parameters
- Response Time: Millisecond-level state capture.
- Protection Rating: IP20.
- Environmental Rating: ISA S71.04 G3 certified.
Material Composition
Industrial-grade flame-retardant housing with high-reliability optocoupler isolation circuits. Premium conductive terminal blocks.
Structural Characteristics
Standard fieldbus module with clear channel labeling and LED indicators. Precision backplane connector for secure mounting.
Working Principle
120VAC signals are stepped down, rectified, and isolated for digital conversion before being transmitted over the redundant fieldbus.
Installation Requirements
Mount on compatible FBM baseplate, typically adjacent to base FBM modules. Use shielded cables with cabinet-side grounding.
Precautions for Use
Never connect DC or over-voltage AC to this module. Disable corresponding node in software before replacement.
