Description
Foxboro P0914WM FBM241C
Technical Specifications
- Hardware Code: P0914WM
- Module Type: FBM241C
- Input Channels: 8 isolated contact sense inputs (15 to 60 VDC)
- Output Channels: 8 isolated switch outputs (15 to 60 VDC at 2 A, or 240 VAC at 5 A)
- Communication: Redundant 2 Mbps Module Fieldbus
Key Features
- Channel Isolation: Every input and output channel is electrically isolated from other channels and ground, ensuring high noise immunity.
- Flexible Power Sourcing: Supports both external and internal power sources for discrete switching operations.
- Programmable Logic: Capable of executing discrete I/O or ladder logic programs locally, featuring configurable input filter times, fail-safe configurations, and continuous or pulsed outputs.
- Hot-Swappable: Allows for safe online replacement without disrupting field wiring, power, or communication cabling.
Application Scenarios
Widely deployed in chemical, pharmaceutical, and power generation industries for monitoring valve limit switches, pump run statuses, and controlling solenoid valves or motor starters.
Performance Parameters
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -40°C to 85°C
- Protection Rating: IP20
- Power Supply: 24 VDC via backplane
Material Composition
Enclosed in a rugged extruded aluminum housing that provides excellent heat dissipation and physical protection. The internal PCBs are conformal-coated to withstand G3-class harsh industrial environments.
Structural Characteristics

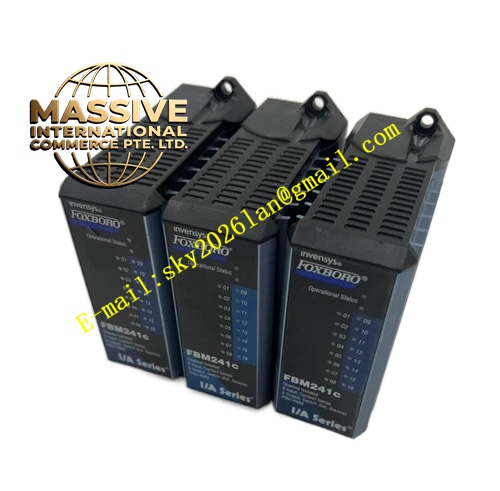

Standard 200 Series FBM single-width form factor. The front panel features individual LED indicators for each input and output point, as well as module operating status.
Operating Principle
The module converts electrical signals from field sensors into digital data for the controller. For outputs, it executes control commands by driving solid-state switches or relays. It communicates bidirectionally over the redundant 2 Mbps fieldbus, accepting data from either Path A or Path B.
Installation Requirements
Must be mounted on a compatible Foxboro 200 Series baseplate. Field wiring connects via a designated Terminal Assembly (TA), which may include fuses or relays depending on the application.
Usage Precautions
Ensure the external field power supply voltage strictly matches the 15-60 VDC specification. Always observe standard ESD handling procedures during module replacement.
