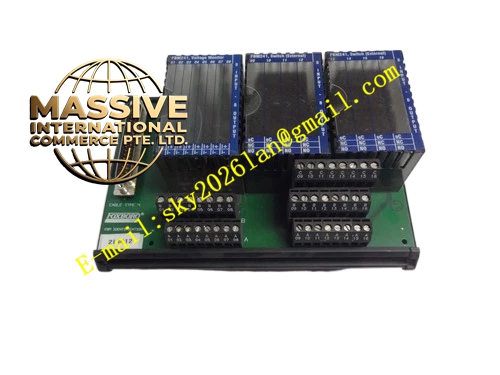

Foxboro P0916TAFBM242
Technical Specifications
- Hardware Code: P0916TA
- Module Type: FBM242
- Output Channels: 16 independent, fully isolated discrete output channels
- Communication: Redundant 2 Mbps Module Fieldbus
Key Features
- High-Power Switching: Supports a wide range of output voltages, including 15 to 60 VDC (up to 2 A), 120 VAC/125 VDC, and 240 VAC.
- Complete Electrical Isolation: Every output channel is electrically isolated from other channels and ground, ensuring superior noise immunity and system safety.
- Programmable Logic Execution: Capable of executing discrete I/O or ladder logic programs locally, featuring configurable input filter times, fail-safe configurations, and continuous or pulsed outputs.
- Hot-Swappable Maintenance: Allows for safe online module replacement without disturbing field wiring, backplane power, or communication cables.
Application Scenarios
Extensively deployed in petrochemical, power generation, and water treatment plants for executing safety interlocks, equipment start/stop commands, and alarm annunciation.
Performance Parameters
- On-State Voltage Drop: 0.2 V maximum at 2.25 A
- Off-State Leakage Current: 0.1 mA maximum
- Operating Temperature: 0°C to 60°C
- Power Supply: 24 VDC (+5%, -10%), max 3 W consumption
Material Composition
Enclosed in a rugged extruded aluminum housing designed to withstand G3-class harsh environments. The internal circuitry is conformal-coated to protect against high dust, moisture, and corrosive gases.
Structural Characteristics
Standard 200 Series FBM single-width form factor. Interfaces with the backplane via precision pins and connects to field loads through a designated Terminal Assembly (TA) that may include fuses, relays, or power distribution.
Operating Principle
The module receives digital control commands from the Field Control Processor (FCP) via the redundant 2 Mbps fieldbus. It isolates the logic-level signal and drives the corresponding output channel to energize or de-energize the connected external field load.
Installation Requirements
Must be mounted on a compatible Foxboro 200 Series baseplate. Ensure adequate front clearance for hot-swapping and maintain a low-impedance protective earth ground to enhance noise immunity.
Usage Precautions
Verify that the external field load voltage and current ratings strictly match the module’s specifications. Always observe standard ESD (Electrostatic Discharge) handling procedures during installation or replacement.
