Foxboro P0926GW

Foxboro P0926GW

Product Introduction

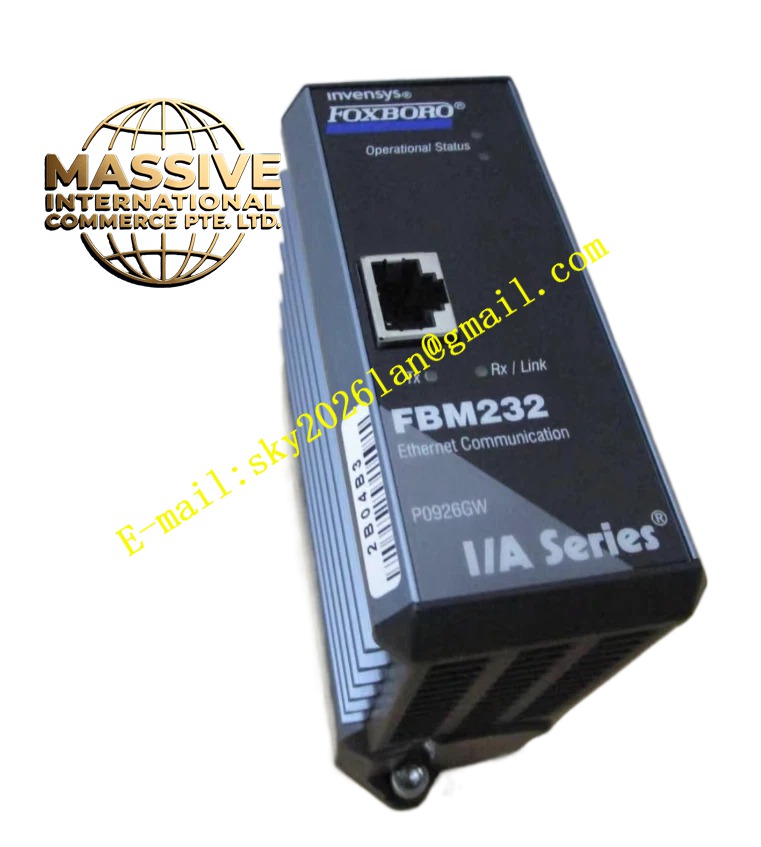

The P0926GW, designated as the FBM232, is a high-performance industrial Ethernet communication module within the Foxboro I/A Series Distributed Control System (DCS). It serves as a Field Device System Integrator (FDSI) module, providing a single-port Ethernet interface between single-port field I/O devices and the EcoStruxure Foxboro DCS system.

Request Quote
Category:

Description

Foxboro P0926GW

Technical Specifications

  • Communication Rate: Supports 10 Mbps or 100 Mbps Ethernet transmission rates.
  • Device Capacity: Capable of communicating with up to 64 external field devices.
  • Data Capacity: Supports up to 2000 DCI (Distributed Control Interface) block connections.
  • Power Supply: Supports DC 24V, AC/DC 85-265V, DC -48V, and DC 12V.
  • Internal Power Consumption: Less than or equal to 5W.

Functional Features

  • Protocol Flexibility: Features dynamically downloadable I/O software drivers from an available protocol library, allowing integration with third-party device protocols.
  • Network Redundancy: Supports O-Ring, MSTP (RSTP/STP), Open-Ring, and O-Chain network redundancy protocols with a self-healing time of less than 30ms.
  • Advanced Network Support: Supports IEEE 802.3at PoE, IEEE 1588v2 clock synchronization, IPv6, and Modbus TCP protocols.
  • Data Integration: Seamlessly integrates field device data into the Foxboro DCS control database for monitoring, alarming, and control.

Application Scenarios
Widely applied in manufacturing, electric power, chemical processing, mining, and building automation for real-time monitoring of parameters like temperature, pressure, and flow, as well as energy monitoring and equipment status tracking.

Performance Parameters

  • Operating Temperature: -10°C to +70°C (Wide temperature versions support -40°C to +75°C).
  • Storage Temperature: -45°C to +85°C.
  • Humidity: 10% to 95% non-condensing.
  • Environmental Rating: G3 level (harsh environment) compliance.

Material Composition
Housed in a rugged, corrugated high-strength industrial enclosure with an IP30 protection rating. Internal components utilize industrial-grade electronic parts designed for high reliability and low power consumption.

Structural Characteristics
Features a compact modular design with dimensions of 50mm (W) x 136mm (H) x 118mm (D). It is equipped with an RJ-45 connector for copper Ethernet and optional SFP slots for fiber optic connections (100Base-FX). Supports wall-mount or DIN rail installation.

Working Principle
The module connects to an Ethernet switch or hub via its RJ-45 port. It loads specific software drivers to communicate with field devices using their native protocols. The FBM232 collects data, performs necessary conversions, and stores it in the DCS database. It communicates with the DCS controller (e.g., FCP270) via a redundant 2 Mbps module fieldbus, ensuring continuous data flow even if one bus path fails.

Installation Requirements
Can be installed in the field or control room. Requires connection to a compatible Foxboro controller and an Ethernet switch. Proper grounding and shielding of Ethernet cables are mandatory to maintain signal integrity.

Usage Precautions

  • Ensure the power supply voltage matches the module’s specifications to prevent damage.
  • When configuring network redundancy, verify that the self-healing time meets the application’s real-time requirements.
  • Regularly monitor the module’s diagnostic LEDs and DCS alarms for early detection of communication faults.
