Product Introduction
The WP30 P0960GC is a versatile Input/Output module within the Foxboro I/A Series Distributed Control System (DCS). It serves as a critical bridge between the field instrumentation and the central control network, enabling high-speed data transmission, system coordination, and seamless integration with third-party systems.

Request Quote
Category:

Description

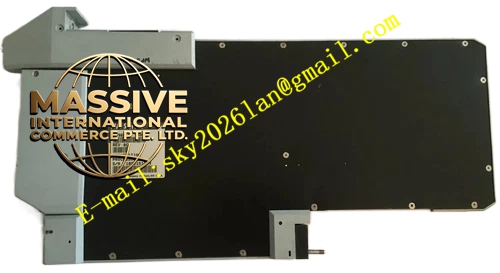

Foxboro WP30 P0960GC

Technical Specifications

  • Hardware Code: P0960GC
  • Communication Interface: Integrated standard 100Mbps fiber optic Ethernet interface.
  • Supported Protocols: Modbus TCP/IP, ControlNet, Ethernet/IP, and Foxboro Evo control network.
  • I/O Expansion: Supports up to 32 Series 200 FBM modules natively, expandable to 128 FBMs via FEM100.
  • Max I/O Points: Supports up to 256 I/O points and remote I/O link expansion.

Key Features

  • High-Speed Data Transmission: Utilizes 100Mbps fiber optic Ethernet to connect to the Foxboro Evo control network, ensuring rapid data exchange.
  • Broad Protocol Compatibility: Seamlessly integrates with multiple industrial communication protocols, reducing system integration costs.
  • Flexible Configuration: Compatible with the entire Foxboro I/A Series I/O module family and upper-level monitoring software.
  • Advanced Processing: Equipped with a 32-bit industrial-grade RISC processor for rapid execution of logic and sequence control.

Application Scenarios
Widely deployed in large-scale industrial automation scenarios, including petrochemical plants, power generation, and oil refineries, to manage complex process automation, real-time data acquisition, and multi-system coordination.

Performance Parameters

  • Operating Temperature: 0°C to 60°C
  • Storage Temperature: -40°C to 85°C
  • Power Supply: 24 VDC, 10W power consumption, supports redundant power configuration.
  • Protection Rating: IP20

Material Composition
Enclosed in a rugged die-cast aluminum housing designed to withstand G3-class harsh environments, including high dust levels and strong electromagnetic interference.

Structural Characteristics
Compact dimensions of 140mm × 165mm × 45mm with a lightweight design of 0.6 kg. Features comprehensive front-panel status indicators and robust rear communication interfaces.

Operating Principle
The module acts as a high-speed communication gateway, acquiring real-time process variable data (temperature, pressure, flow) from field devices via FBM modules and transmitting it over the 100Mbps Ethernet network. It also receives control commands from the DCS and executes logic, timing, and sequence control locally.

Installation Requirements
Must be installed on a compatible Foxboro 200 Series baseplate. The control cabinet must maintain adequate ventilation and a low-impedance protective earth ground to enhance noise immunity.

Usage Precautions
When configuring hot-standby redundancy, ensure primary and backup modules have identical firmware versions. Always follow standard ESD (Electrostatic Discharge) handling procedures during installation or replacement.
