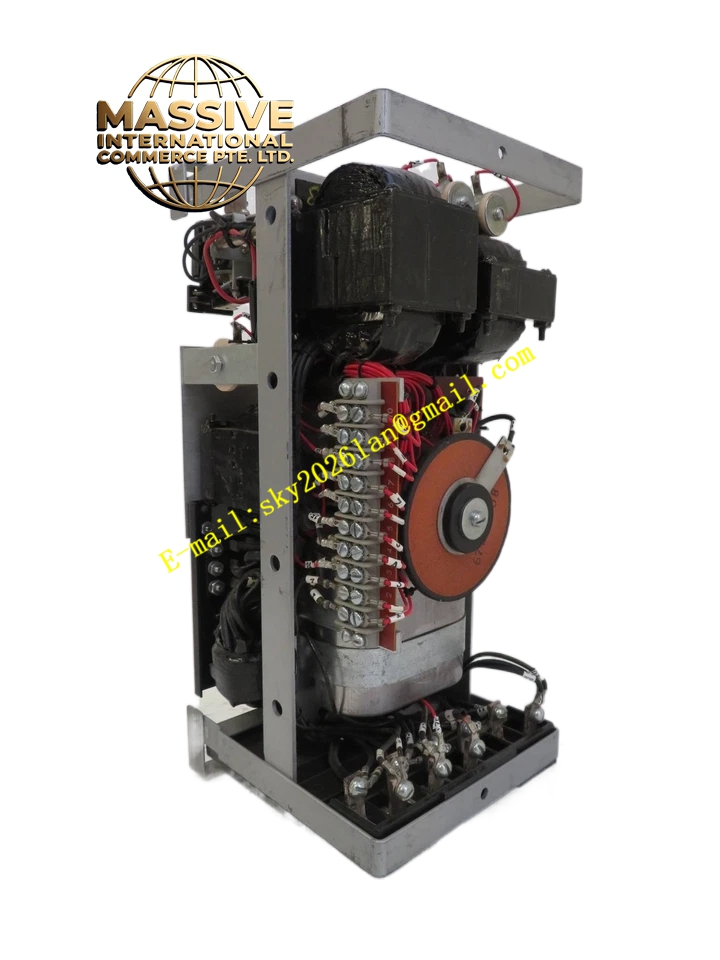

GE 12BDD15B11A
Technical Specifications
- Manufacturer: General Electric (GE)
- Part Number: 12BDD15B11A
- Type: Control Relay / Interface Module
Functional Features
- Signal Isolation: Protects low-voltage control circuits from high-voltage field transients.
- Switching Capability: Reliable make/break contacts for controlling downstream devices.
- Status Indication: Visual indicators for operational status and fault conditions.
Application Scenarios
PLC output interfacing, motor control circuits, and alarm monitoring systems.
Performance Parameters
- Contact Rating: Rated for industrial switching loads.
- Mechanical Life: Millions of operations for long-term reliability.
Material Composition
Industrial-grade relay contacts, robust plastic housing, and gold-plated connector pins.
Structural Characteristics
Plug-in or DIN-rail mountable module with clearly labeled terminal connections.
Working Principle
Receives a low-power control signal, energizes an internal coil, and actuates contacts to switch a higher-power load circuit.
Installation Requirements
Ensure proper orientation when plugging into the base. Verify wire sizes match the terminal ratings.
Usage Precautions
Do not exceed the maximum contact voltage or current. Provide surge suppression for inductive loads.
