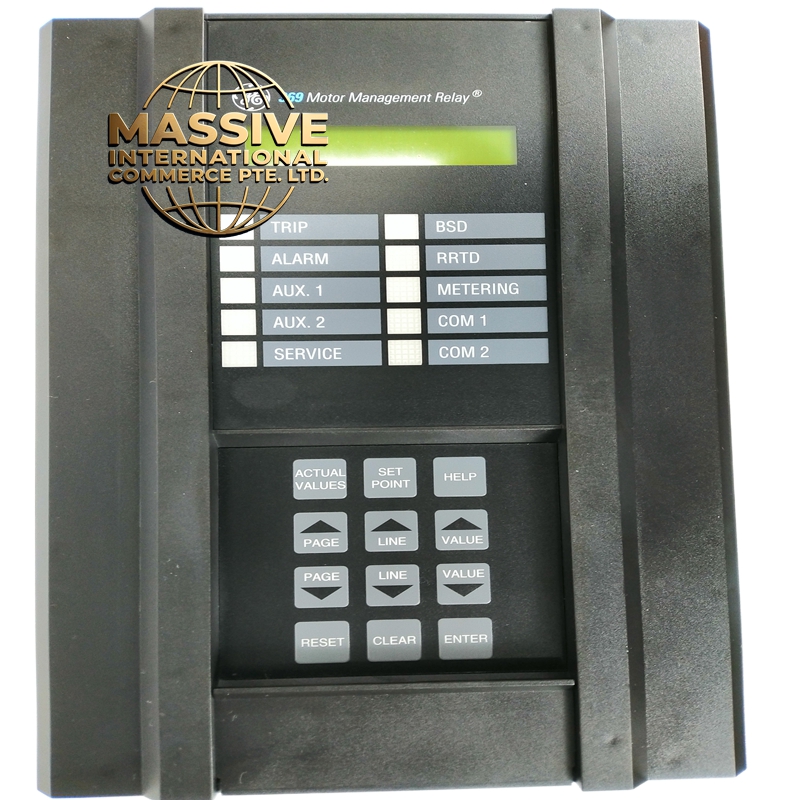

GE 369-HI-R-M-0-P-0-E

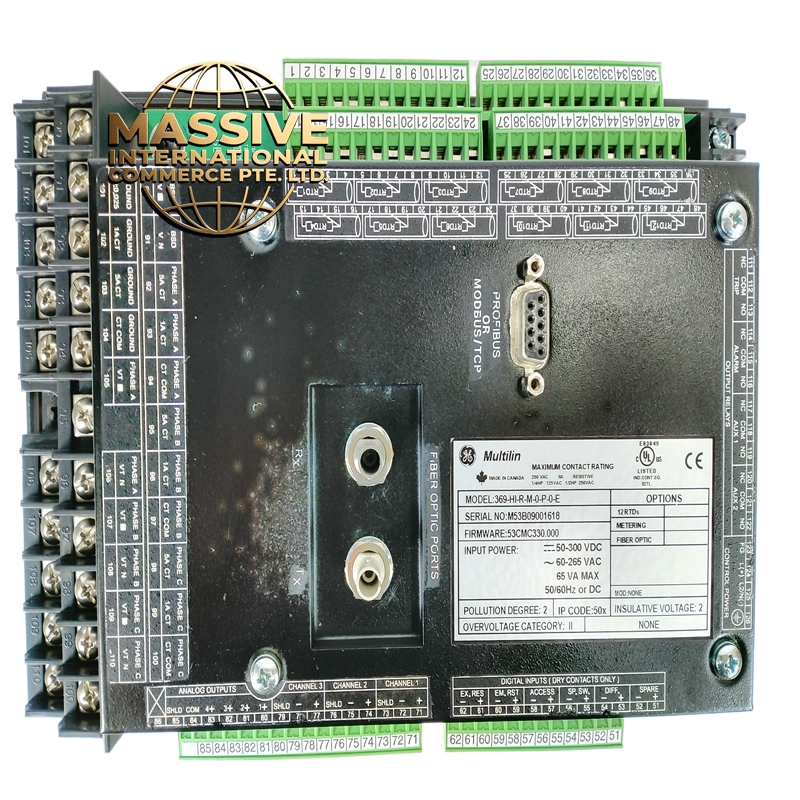

GE 369-HI-R-M-0-P-0-E - Image 2

GE 369-HI-R-M-0-P-0-E

Product Introduction: This is a high-performance protective relay module from the GE Multilin 369 series. The “HI” designation indicates a high-impedance voltage input configuration, specifically designed for direct connection to potential transformer (PT) secondary circuits without requiring intermediate matching transformers. The “R” indicates relay output, “M” indicates manual reset capability, “0” indicates DC power supply (typically 125V DC or 250V DC), “P” indicates RS-485 serial communication port, “0” indicates no Ethernet port, and “E” indicates enhanced binary I/O configuration. This module is a core component in medium voltage motor and transformer protection schemes.

Request Quote
Category: SKU: ABB 1MRK002122-ABR02-1

Description

GE 369-HI-R-M-0-P-0-E

Technical Specifications:

  • Series: GE Multilin 369 Series
  • Input Type: High Impedance (HI) Voltage Input
  • Voltage Range: 1V to 120V AC nominal (from PT secondary)
  • Input Impedance: Greater than 100kΩ per phase
  • Frequency Range: 16Hz to 65Hz (extended range)
  • Output Type: 4 Relay Outputs (Form C contacts)
  • Output Contact Rating: 5A at 250V AC / 30V DC resistive
  • Power Supply: 125V DC or 250V DC (selectable)
  • Power Consumption: Less than 5W typical
  • Communication: RS-485, Modbus RTU protocol, 9600 to 115200 baud
  • Binary I/O: 8 binary inputs + 4 binary outputs (enhanced)
  • Reset Type: Manual reset (front panel push button)
  • Operating Temperature: -20°C to +70°C
  • Storage Temperature: -40°C to +85°C
  • Dimensions: Approximately 160mm x 120mm x 90mm (H x W x D)
  • Weight: Approximately 0.8kg
  • Standards: IEC 60255, IEEE C37.90, UL 508

Functional Features:

  • High-impedance voltage inputs eliminate the need for intermediate matching transformers, reducing cost and wiring complexity
  • Supports directional overcurrent (67), non-directional overcurrent (50/51), ground fault (50G/51G), under/over voltage (27/59), under/over frequency (81U/81O)
  • Four independent relay outputs can be configured for trip, alarm, close block, or lockout
  • RS-485 serial communication enables integration with SCADA, DCS, and energy management systems
  • Enhanced binary I/O provides remote indication of relay status, breaker position, and alarm conditions
  • Manual reset feature ensures operator acknowledgment before relay re-energizes after a trip event
  • Front-panel LED indicators show power, trip, alarm, and communication status
  • Programmable logic allows custom protection schemes without external relays

Application Scenarios:

  • Medium voltage (3.3kV to 36kV) motor protection in petrochemical refineries
  • Generator step-up transformer protection in power plants
  • Industrial feeder protection in mining operations
  • Wind turbine generator protection
  • Marine vessel power distribution systems
  • Pulp and paper mill motor protection

Performance Parameters:

  • Overcurrent Pickup Range: 0.1A to 40A secondary (adjustable in 0.01A steps)
  • Time Delay Range: 0.01s to 300s (IDMT, definite time, or inverse time curves)
  • Voltage Pickup Range: 10V to 120V (adjustable)
  • Accuracy: ±1% of setting for overcurrent, ±2% for voltage
  • Operating Time: Less than 35ms for internal faults (typical)
  • Communication Response Time: Less than 100ms for SCADA polling
