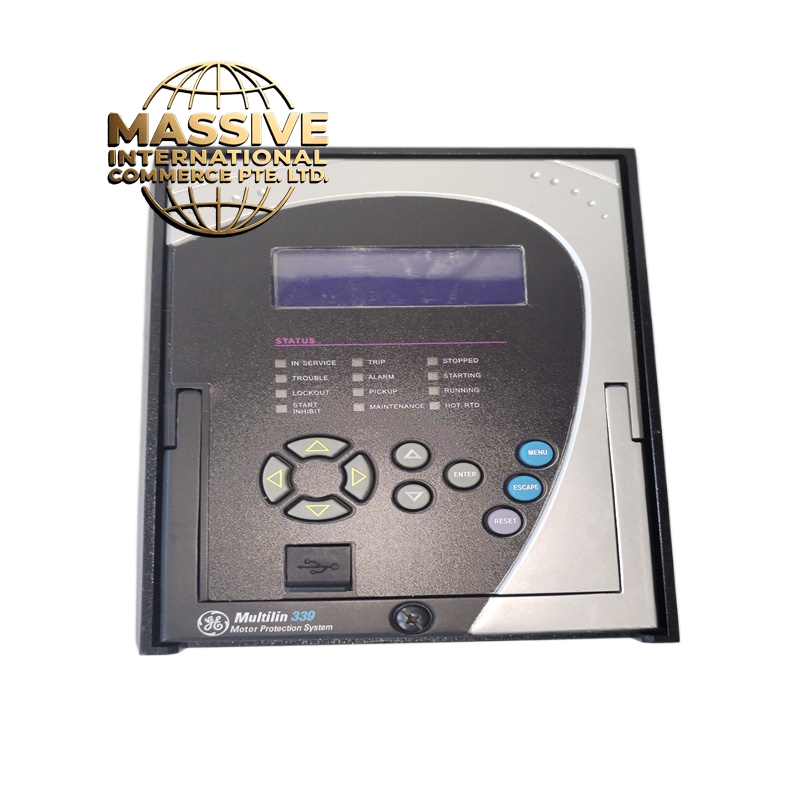

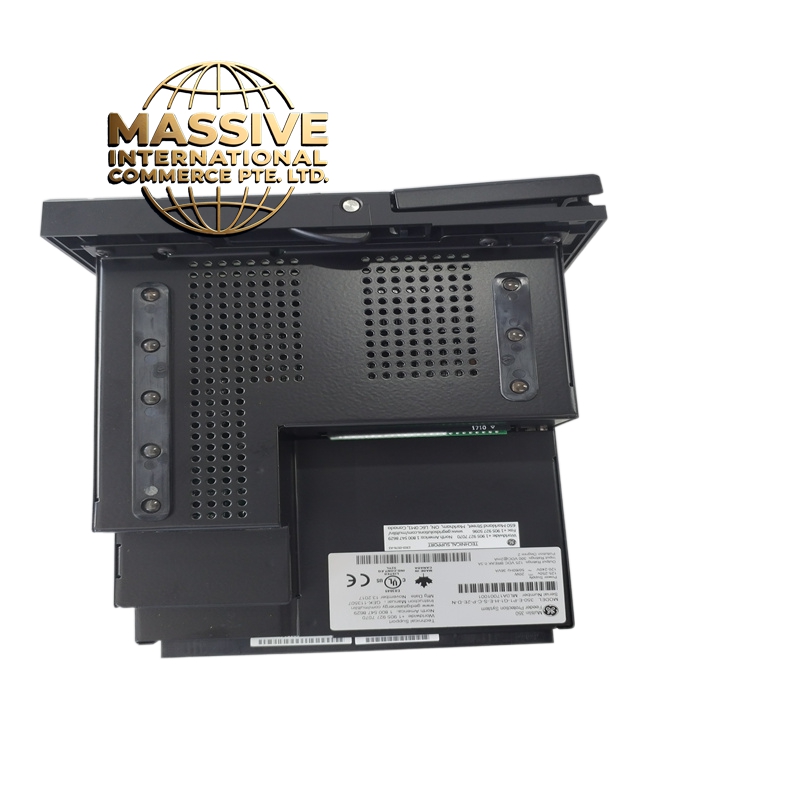

Product Overview: The 339-E-P5-G5-H-E-S-N-N-SN-D-N is a comprehensive motor protection system from GE’s Multilin 3 Series family, designed to protect and manage small to medium-sized AC motors and driven equipment. This specific configuration features a drawout design with universal power supply, 5A phase and ground current inputs, standard protection functions, and enhanced communication capabilities including Ethernet and RS-485. The relay provides advanced motor protection, control, and monitoring in an integrated, economical package with streamlined workflow processes.

Request Quote
Category: SKU: GE 339-E-P5-G5-H-E-S-N-N-SN-D-N

Description

GE 339-E-P5-G5-H-E-S-N-N-SN-D-N

Technical Specifications:

Parameter Specification
Product Family GE Multilin 3 Series
Model 339 Motor Protection System
User Interface English with programmable LEDs (E)
Phase Current Inputs 5A, 3-phase (P5)
Ground Current Input 5A (G5)
Power Supply 110-250 V DC / 110-230 V AC (H)
Input/Output 10 Contact Inputs, 4 Outputs (1 Form A, 3 Form C), 3 RTD Inputs (S)
Current Protection Standard configuration: 37, 46, 48, 49, 50P(1), 50G/SG(1), 50N(1), 50L, 51R, 66, 86, 51N(1), 51P(1), 50BF (S)
Voltage Protection None (N)
Other Options No selection (N)
Communications Standard + Ethernet (Copper + Fiber – MTRJ) Modbus TCP/IP, DNP3.0, IEC 60870-5-104 (SN)
Case Design Protection Relay (drawout design) with no chassis (D)
Harsh Environment None (N)
Operating Temperature -20°C to +60°C
Storage Temperature -40°C to +85°C
Weight Approx. 2.6 kg (6 kg shipping)
Dimensions Compact drawout case design

Advanced Motor Thermal Model:

  • Overload Curves: Customizable FlexCurves for smooth custom overload protection

  • Unbalance Biasing: Adjusts thermal model based on current unbalance conditions

  • Hot/Cold Safe Stall Ratio: Differentiates between hot and cold motor conditions

  • Motor Cooling Time Constants: Accounts for motor cooling characteristics

  • Thermal Inhibit: Prevents motor restart until safe thermal conditions

  • Emergency Restart: Allows supervised override of thermal lockout

  • RTD Biasing: Adjusts thermal model based on actual RTD temperature measurements

Communication Capabilities:

  • Standard Ports: RS-485 (Modbus RTU), Front USB, Rear serial port

  • Ethernet Options: Copper and fiber (MTRJ connector) with Modbus TCP/IP

  • Protocol Support: IEC 61850, IEC 61850 GOOSE, DNP 3.0, Modbus RTU, Modbus TCP/IP, IEC 60870-5-104, IEC 60870-5-103

  • Simultaneous Communication: All communication ports capable of operating simultaneously

  • GOOSE Messaging: Peer-to-peer communication between relays in as fast as 8 ms

  • Virtual Inputs: Remote digital commands via communication interfaces

Security Features:

  • Password Security: Master password (8-10 alphanumeric characters), Settings password (3-10 characters), Control password (3-10 characters)

  • Security Audit Trail: Records last 10 configuration changes with MAC address, modification details, and method of change

  • Access Levels: Separate passwords for local and remote operators

  • NERC CIP Compliance: Security reporting requirements support

Monitoring and Diagnostics:

  • Metering Information: Phase currents (Ia, Ib, Ic, In, Ig, Isg), phase-to-phase and phase-to-ground voltages, active power, reactive power, frequency, current unbalance, motor load percentage, thermal capacity used, RTD temperatures

  • Event Recording: 256 events time-tagged to nearest millisecond

  • Oscillography: 32 samples per cycle, 8 individual channels, triggered internally or externally

  • Motor Health Report: Start/stop history, comprehensive logs, acceleration times, starting currents

  • Preventative Maintenance: Environmental condition monitoring and alarming

  • Failure Detection: Communication port and IRIG-B failure alarms

Input/Output Details:

  • Contact Inputs: 10 opto-isolated inputs with programmable thresholds (17, 33, 84, 166 VDC ±10%)

  • Input Recognition Time: 1/2 cycle

  • Debounce Time: 1 to 64 ms selectable

  • Form A Output Relays: 2 electromechanical (Trip and Close with coil monitoring)

  • Form C Output Relays: 5 electromechanical (configurable)

  • RTD Inputs: 3 internal 100 Ohm platinum RTD inputs (expandable to 12 with RMIO module)

Physical Characteristics:

  • Drawout Construction: Complete withdrawable feature eliminating rewiring for testing

  • Communication Retention: Maintains communication status even after relay withdrawal

  • Pluggable Connections: RS-485 and IRIG-B connections for easy troubleshooting

  • Compact Design: Minimizes mounting requirements, enables side-by-side panel mounting

  • Retrofit Compatibility: Easy retrofit to existing cases

Applications:

  • Small to medium-sized AC motor protection (3-5000 HP)
  • Medium voltage motor applications
  • Feeder protection applications
  • Process motor protection in industrial environments
  • Pump, fan, compressor, and conveyor motor control
  • Water/wastewater treatment facilities
  • Oil and gas production equipment
  • Mining and minerals processing
  • Power generation auxiliary systems

Installation Requirements:

  • Current Transformers: 10 to 1500 A primary, secondary must match relay (5A for this configuration)

  • Ground CT: Zero-sequence (core balance) recommended over residual connection

  • Voltage Transformers: Up to 300:1 ratio, 50-240 V secondary (if voltage protection option installed)

  • Control Power: 110-250 V DC or 110-230 V AC (must match H option)

  • Grounding: Direct connection to ground bus with shortest practical path using tinned copper braided cable

  • External Protection: Circuit breaker or protective device required near equipment

  • Mounting: Panel or chassis mounting (drawout case design)

Operating Conditions:

  • Ambient Temperature: 20°C to +60°C operating, -40°C to +85°C storage

  • Humidity: 5-95% non-condensing

  • Altitude: Up to 2000 meters

  • Vibration: IEC 60255-21-1 Class 1

  • Enclosure: IP20 standard (IP20 kit available as accessory)
