Description

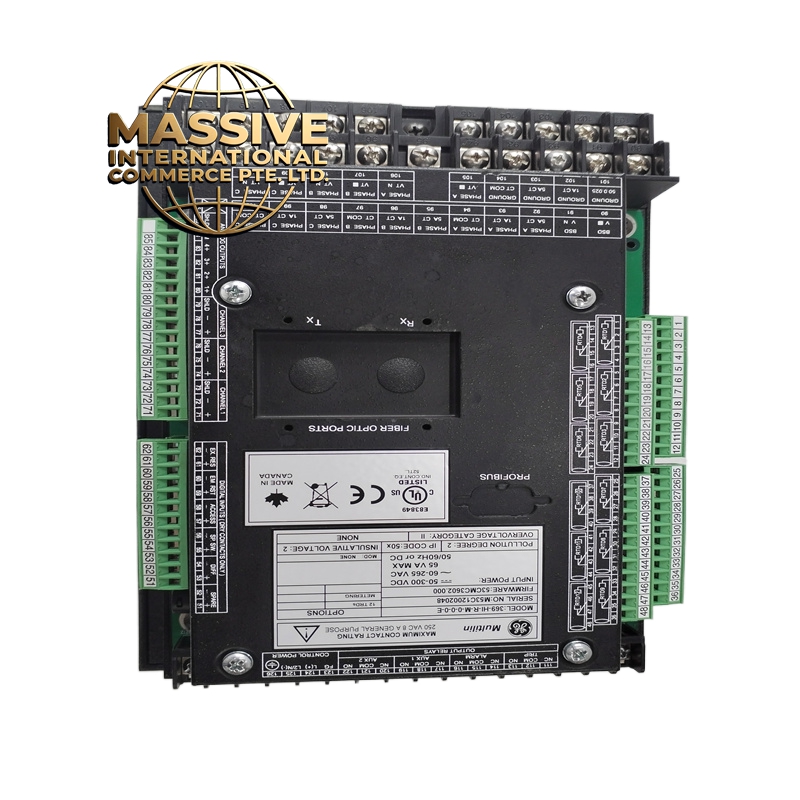

GE 369-HI-R-M-0-0
Technical Specifications:
| Parameter | Specification |
|---|---|
| Product Family | GE Multilin 369 Series |
| Control Power | 50-300 VDC / 60-265 VAC (HI) |
| RTD Inputs | Enhanced RTD package (R) |
| Metering Package | Full metering included (M) |
| Communication | Standard RS-485 (0) |
| Analog Outputs | Standard (0) |
| Case Design | Drawout construction |
| Shipping Weight | 11-15 lb |
Enhanced RTD Features (R):
-
Additional RTD Inputs: More input channels compared to standard configuration
-
RTD Types: 100 Ohm platinum (DIN 43760), 100 Ohm nickel, 120 Ohm nickel, 10 Ohm copper
-
Temperature Range: 50°C to +250°C (platinum)
-
Accuracy: ±2°C or better
-
Lead Compensation: Automatic 3-wire lead resistance compensation
-
Sensor Failure Detection: Open and short circuit RTD detection with alarm
Protection Functions:
-
All standard 369 protection functions (thermal model, overcurrent, ground fault, unbalance, etc.)
-
Enhanced Thermal Protection: More RTD points for comprehensive thermal monitoring
-
Bearing Temperature Monitoring: Direct bearing temperature measurement and protection
-
Stator Temperature Monitoring: Multi-point stator winding temperature monitoring
-
Ambient Temperature Compensation: Automatic adjustment based on ambient conditions
Applications:
-
Large motor applications requiring extensive thermal monitoring
-
High-voltage motors with multiple bearing points
-
Critical motors where bearing failure is a major concern
-
Motors operating in variable temperature environments
-
Process applications requiring detailed thermal diagnostics
