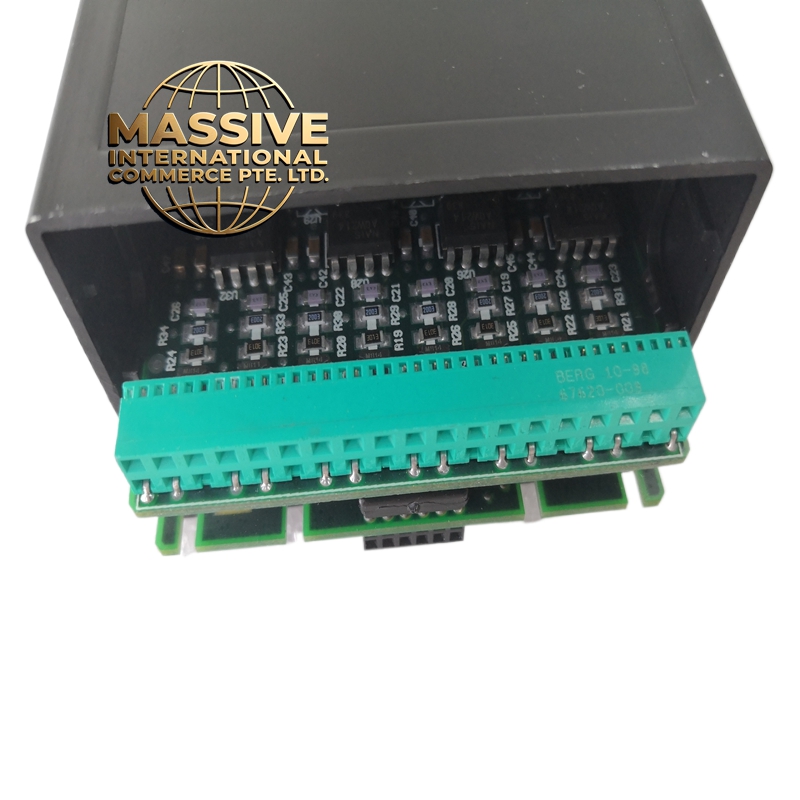

GE HE670ADC830
GE HE670ADC830 - Image 2

GE HE670ADC830

Product Introduction: The HE670ADC830 is a high-density, 32-channel analog input module designed for the Mark VIe distributed control system used in gas turbines, steam turbines, and combined cycle power plants. It accepts a wide range of analog signals from field devices including RTDs, thermocouples, milliamp current loops, and millivolt signals. The module performs high-resolution analog-to-digital conversion and delivers digitized data to the controller over the high-speed backplane bus.

Request Quote
Category: SKU: GE HE670ADC830

Description

GE HE670ADC830

Technical Specifications:

  • Number of Channels: 32 single-ended or 16 differential inputs
  • Input Signal Types: 4–20 mA, 0–20 mA, 0–5 V, 1–5 V, RTD (Pt100, Pt1000, Cu50, Cu100, Ni120), Thermocouple (J, K, T, E, N, R, S, B)
  • Resolution: 16-bit A/D converter
  • Sampling Rate: Up to 10 samples per second per channel
  • Accuracy: ±0.1% of full scale (typical)
  • Isolation: 1500 VDC channel-to-bus isolation
  • Backplane Interface: Mark VIe high-speed serial backplane
  • Power Consumption: Approximately 4.5 W
  • Operating Temperature: 0°C to 60°C (extended range available)
  • Dimensions: Standard Mark VIe Eurocard size

Functional Features:

  • Supports both single-ended and differential input configurations
  • Built-in cold junction compensation for thermocouple inputs
  • Auto-detection of RTD and thermocouple types
  • Programmable input filtering to reject noise
  • LED status indicators per channel group
  • Hot-swappable design for maintenance without system shutdown

Application Scenarios:

  • Gas turbine control systems (GE Frame 5, 6, 7, 9E)
  • Steam turbine governor and protection systems
  • Combined cycle plant balance of plant monitoring
  • Industrial process control requiring high channel density

Material Composition:

  • PCB: FR-4 high Tg epoxy glass fiber
  • Connector: High-reliability European-style DIN 41612 connector with gold-plated contacts
  • Housing: Aluminum alloy with zinc-nickel plating for EMI shielding
  • Isolation Barrier: Opto-isolated digital interface

Structural Features:

  • Eurocard format (160 mm × 233 mm)
  • Front-panel terminal blocks for field wiring
  • Rear backplane connector for system integration
  • DIN rail or panel mounting compatible

Working Principle: Each analog input channel passes through a signal conditioning circuit that includes amplification, filtering, and linearization. The conditioned signal is fed into a 16-bit successive approximation A/D converter. The digital result is transferred via the backplane serial bus to the CPU module (such as HE693RTM705) for processing in the control algorithm. Installation Requirements:

  • Must be installed in a Mark VIe compatible chassis with proper backplane connectivity
  • Field wiring must use shielded twisted pair cables
  • Grounding must follow single-point grounding rules to avoid ground loops
  • Terminal torque: 0.5–0.8 Nm for standard screws

Usage Precautions:

  • Do not exceed the maximum input voltage of ±30 V on any channel
  • Ensure proper cold junction compensation when using thermocouples
  • Verify input type configuration in the controller software before commissioning
  • Replace fuse on the module if overcurrent protection trips
