Description

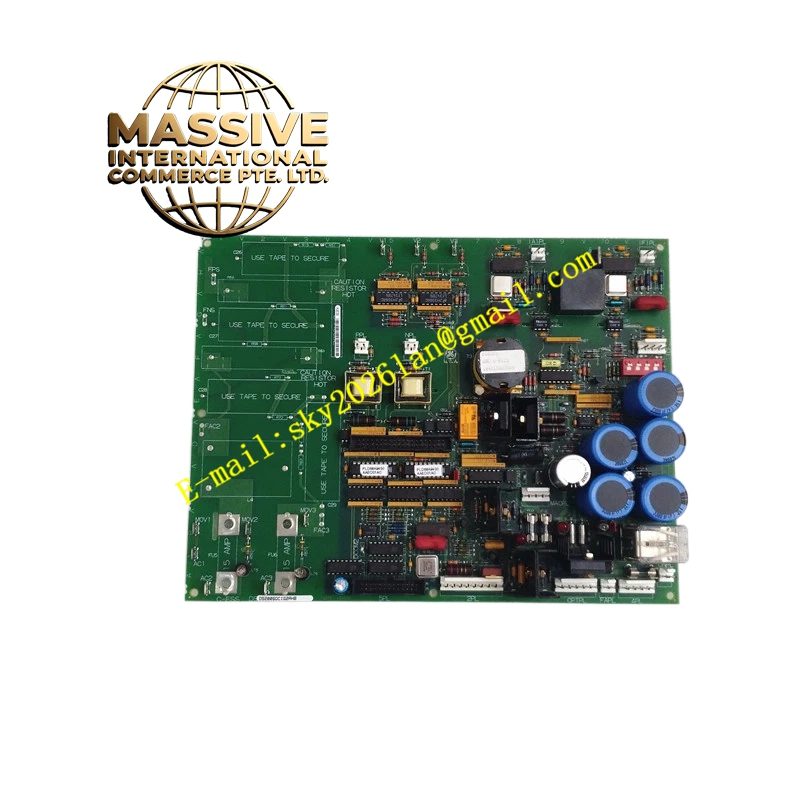

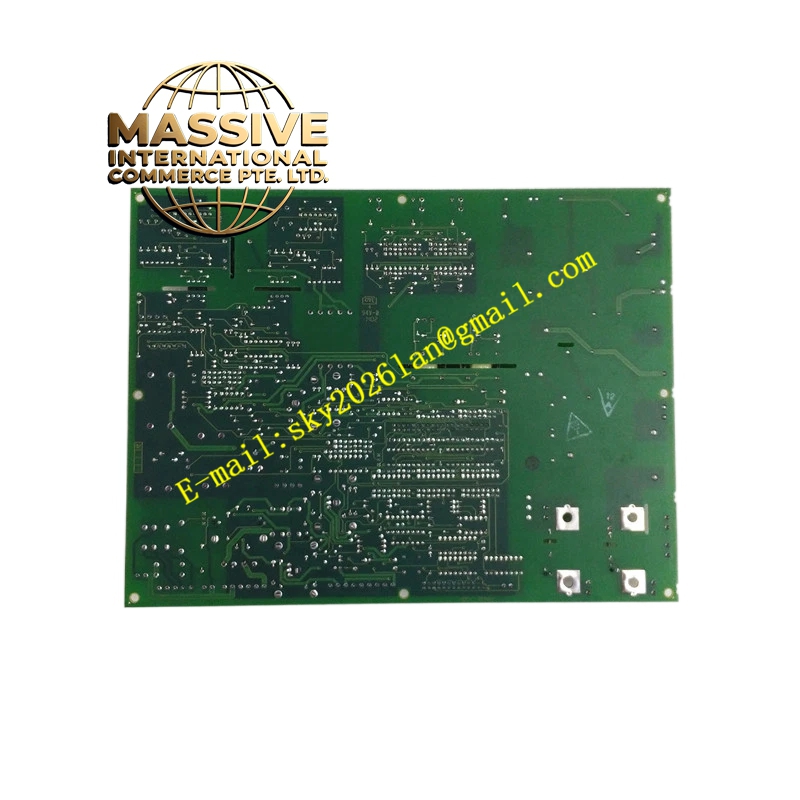

GE DS200SPCBG1A
Technical Specifications:
- Brand: General Electric (GE)
- Model: DS200SPCBG1A
- Product Type: Signal Processing Control Board
- Application: AC/DC Drives and Motion Control
Functional Features:
- Feedback Processing: Accurately processes encoder, resolver, and tachometer feedback for precise motor control.
- Current Regulation: Executes high-speed current loop algorithms for optimal torque and speed response.
- Fault Detection: Monitors motor and drive health, triggering protective trips for overcurrent or ground faults.
Application Scenarios:
Essential in industrial drives, CNC machines, rolling mills, and hoist applications requiring precise speed and torque control.
Performance Parameters:
- Control Loop Speed: Microsecond-level current loop updates for dynamic motor response.
- Resolution: High-resolution feedback processing for smooth low-speed operation.
Material Composition:
Precision analog components, low-noise operational amplifiers, and high-speed digital signal processors.
Structural Characteristics:
Compact board with shielded input connectors, adjustment potentiometers, and test points for oscilloscope monitoring.
Working Principle:
Reads motor feedback signals, compares them to reference values, and adjusts PWM switching patterns to maintain desired motor performance.
Installation Requirements:
Ensure all feedback cables are shielded and grounded properly. Route signal cables away from high-power motor leads.
Usage Precautions:
Never adjust tuning potentiometers without proper instrumentation. Verify motor parameters match the board configuration before commissioning.
