Description

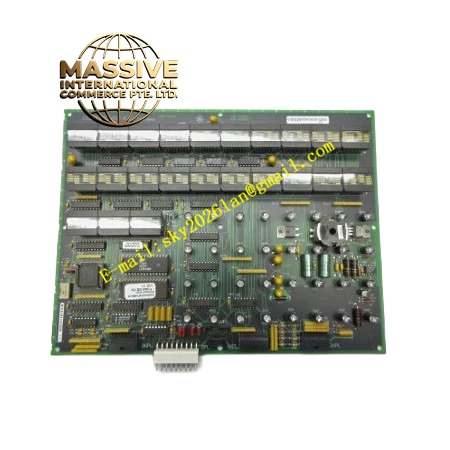

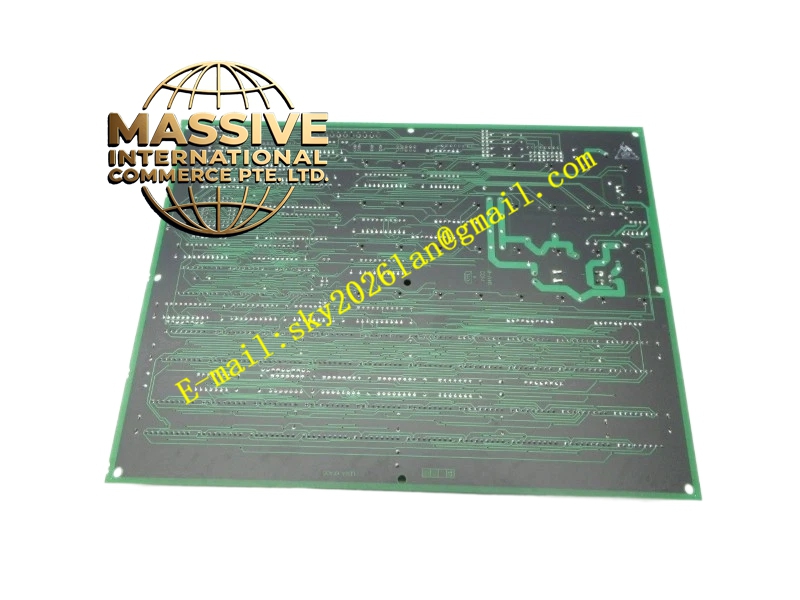

GE DS215UDSAG1AZZ01A
Technical Specifications
- Product Type: Universal Discrete I/O Board.
- System Compatibility: GE Speedtronic Mark V.
- Configuration: Specific terminal and component configuration denoted by AZZ01A.
Functional Features
- Field Interface: Converts Mark V logic-level signals to field-compatible voltages/currents.
- Isolation: Provides optical or transformer isolation for field signals to prevent ground loops.
- Terminal Integration: Integrates terminal blocks for direct field wiring.
Application Scenarios
- Turbine Control: Interfacing with limit switches, solenoids, and relays in turbine systems.
- Safety Systems: Providing discrete I/O for emergency shutdown systems.
Performance Parameters
- Voltage Levels: Compatible with standard industrial 24VDC or 125VDC field signals.
- Current Capacity: Sufficient drive capability for industrial relays and solenoids.
Material Composition
- Assembly: PCB with integrated terminal blocks and isolation components.
- Housing: Protective framing for mechanical support.
Structural Characteristics
- Design: Compact assembly designed for Mark V rack mounting.
- Labeling: Clear silkscreen for terminal identification.
Working Principle
Acts as a bridge, translating digital commands from the Mark V processor into physical electrical signals for field devices, and vice versa, while providing necessary isolation and protection.
Installation Requirements
- Follow Mark V wiring manuals for proper termination.
- Ensure proper grounding of the UDSA chassis.
Usage Precautions
- Verify field voltage matches board specifications before energizing.
- Use proper torque on terminal screws to prevent loose connections.
