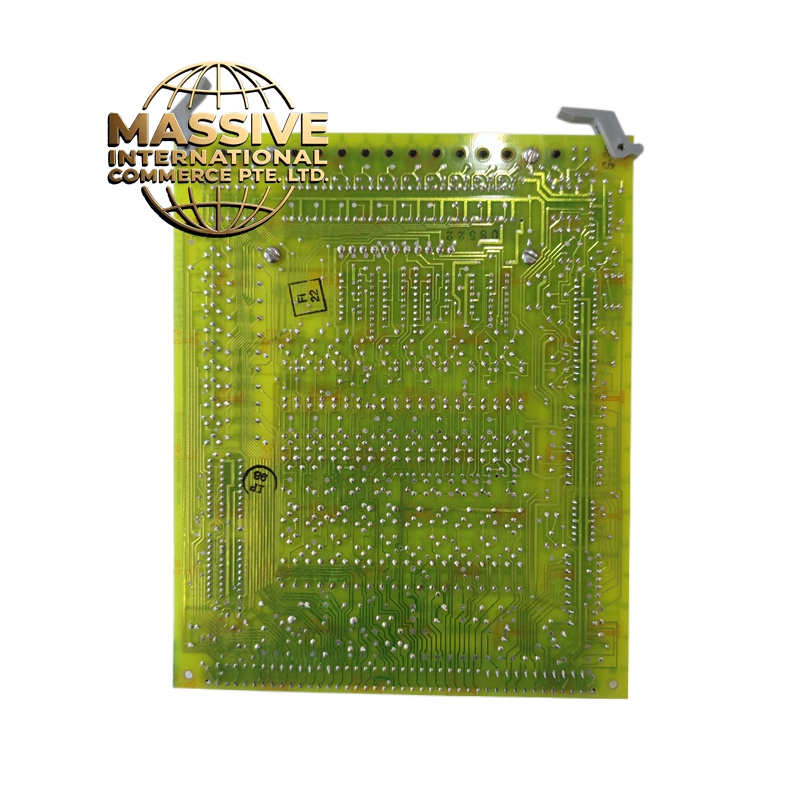

GE DS3800HIOC

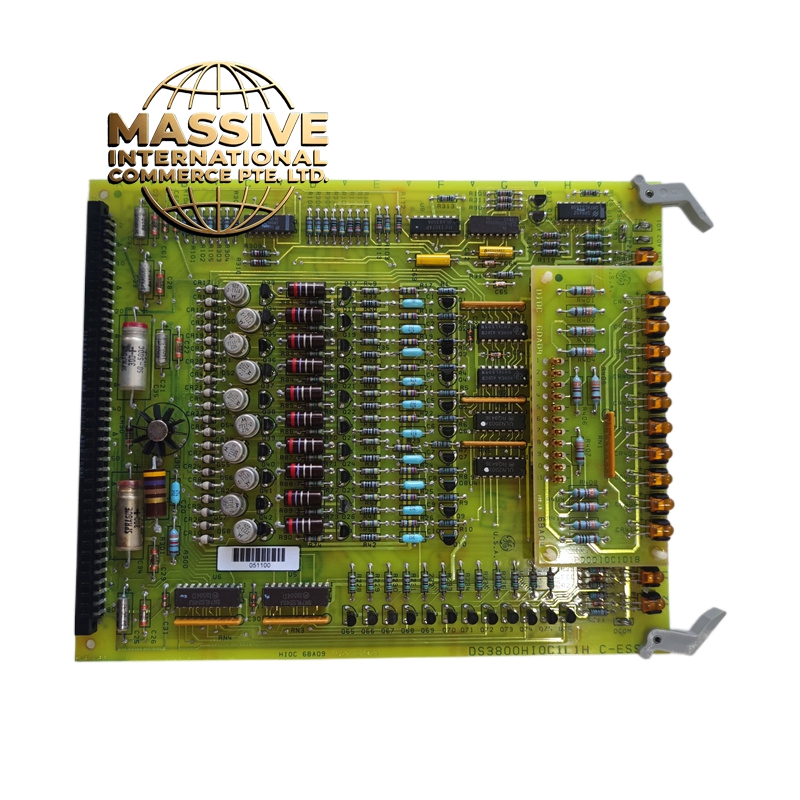

GE DS3800HIOC - Image 2

GE DS3800HIOC

Product Overview The GE DS3800HIOC is a high-level input/output control circuit board designed for GE Speedtronic Mark IV turbine control systems. It serves as a critical interface module that manages input and output signals between field devices and the main control system, ensuring stable communication and signal processing within turbine control environments. The board is specifically optimized for signals that have already been amplified or conditioned, reducing the processing load on the central processor. It is often described as the “sensory nervous system” of the Mark IV Speedtronic controller, bridging digital precision with heavy-duty industrial sensing

Request Quote
Category: SKU: GE DS3800HIOC

Description

GE DS3800HIOC

Technical Specifications

Parameter Specification
Brand General Electric (GE)
Series DS3800 / Speedtronic Mark IV
Product Type I/O Control Circuit Board / High-Level I/O Board
Input Voltage 24 VDC nominal
Operating Temperature -40°C to +70°C
Channels 32 inputs, 32 outputs
Maximum Current Output 2 A per channel
Communication Protocol RS232
Input Response Time 1 ms
Output Response Time 2 ms
Isolation Voltage 1500 V AC
Dimensions 12.5 × 8.5 × 4.5 inches
Weight 4.5 lbs (2.04 kg)
Speed 150 MHz
Frequency 47–63 Hz
Power Consumption 2.6 W
Certification CE

Key Features

  • High Precision Monitoring: Accurately monitors voltage and provides reliable voltage data for system stability.

  • Signal Conditioning: Built-in hardware filtering reduces electrical noise from high-voltage cables, ensuring signal purity.

  • Modular Integration: Plugs directly into the Mark IV rack, allowing quick hardware expansion or replacement without extensive rewiring.

  • Industrial-Grade Design: Uses industrial-grade discrete components highly resistant to thermal aging, common in power plant control rooms.

  • Alarm and Trip Logic: Processes discrete signals that trigger emergency trip sequences (ETS) in the event of over-temperature or vibration.

  • Data Logging: Provides real-time signal feedback to the operator interface for performance tracking and historical trending.

Structural Features

  • Built with multiple integrated circuits including HP69137 DIP, AM26LS30 DIP dual differential integrated circuits, and AM26LS33 quad differential receivers.
  • Includes an LM309K 5V voltage regulator (TTL/DTL compatible, output over 1A, with thermal overload protection).
  • Features Bicron transformer 218A4819P2 and multiple polyester capacitors.
  • Board edge marked with “6BA04” identifier.
  • Factory-drilled mounting holes at three corners for secure installation.

Applications

  • Gas and steam turbine control systems
  • Power generation plants
  • Oil and gas facilities
  • Industrial automation systems
  • Robot systems requiring reliable signal interface

Installation Requirements

  • Power down the Mark IV rack before inserting the board.
  • Use card-edge guides to ensure proper alignment with the backplane.
  • Secure all ribbon cable latches to prevent intermittent communication errors.
  • Always use an ESD (Electrostatic Discharge) wrist strap during handling.
  • Install in a vibration-free, dry, and well-ventilated enclosure.

Maintenance Notes

  • Visually inspect electrolytic capacitors for signs of bulging or leaking.
  • Use non-conductive cleaner on edge connectors if oxidation is present.
  • Legacy boards contain CMOS components highly sensitive to static electricity.
