Description

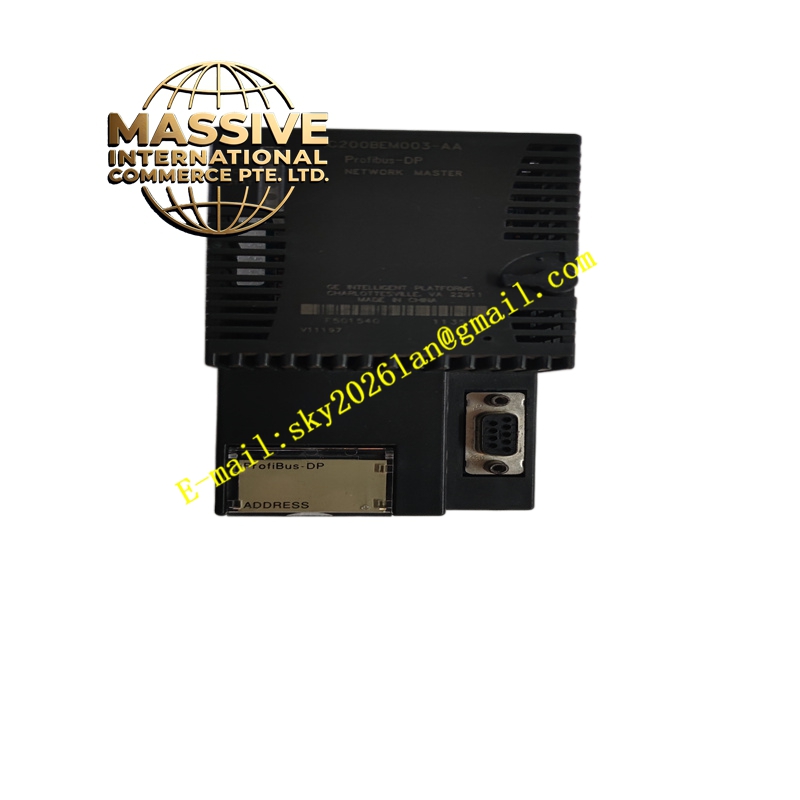

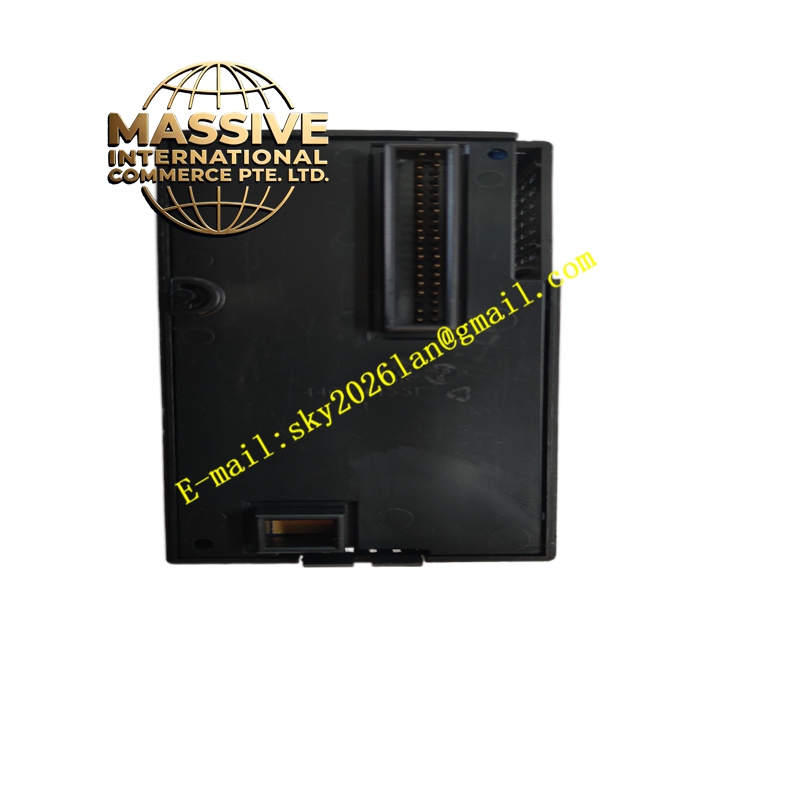

GE IC200BEM003 Technical Specifications
-
Protocol: PROFIBUS-DP (Master)
-
Data Capacity: 3,584 bytes input / 3,584 bytes output
-
Data Rate: 9.6 Kbaud to 12 Mbaud (auto-detected)
-
Topology: Linear bus with termination at both ends
-
Connector: 9-pin D-sub (female)
-
Cable Type: Shielded twisted-pair
-
Power Consumption: 450 mA at 5 VDC
-
Isolation: 250 VAC (network-to-frame); 1500 VAC (PROFIBUS-to-backplane)
-
Supported Devices: Up to 125 slaves without repeaters
-
Dimensions: 165 × 65 × 70 mm (approximately)
-
Weight: 0.24 kg
-
Certifications: UL for hazardous areas
Functional Features The module supports Sync and Freeze modes for deterministic data exchange. Front-mounted LEDs display real-time communication status, power status, and fault diagnostics. Configuration is performed via Windows-based software through the host controller. The module handles slave diagnostics and network monitoring functions.
Applications
-
Conveyor system synchronization in packaging plants
-
Automotive manufacturing line control
-
Distributed I/O networking architectures
-
Multi-protocol industrial networking systems
-
Machine-level network communication nodes
Installation Requirements Requires mounting on the IC200CHS006 communications carrier. Uses shielded twisted-pair cables in linear bus topology. Both ends of the bus segment must be properly terminated. The DIN rail must be grounded for EMC protection.
