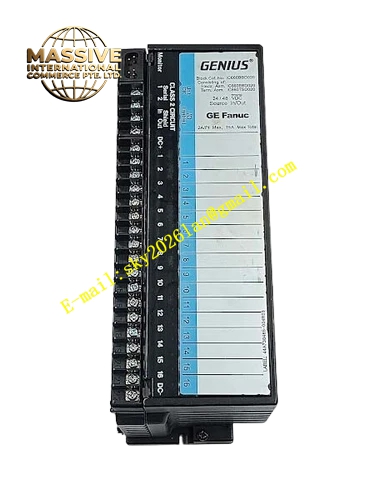

GE IC660EBD020X
Technical Specifications: Total circuit quantity: 32 individually configurable discrete circuits; circuit configuration modes: digital input, digital output, output with feedback monitoring; input voltage range 4‑30 VDC, compatible with TTL, 12 VDC and 24 VDC signal levels; per‑channel output maximum current 0.5 A; block‑to‑block isolation 1500 V RMS; power supply requirement 18‑30 VDC; power dissipation range 11‑18 W depending upon channel configuration; communication interface: Genius serial fieldbus protocol; operating temperature 0 °C‑60 °C; storage temperature ‑40 °C‑100 °C; relative humidity 5‑95 %RH non‑condensing; vibration resistance compliant with 5‑10 Hz, 2‑inch displacement specification; weight 1.5 kg; per‑channel LED status indicators; built‑in diagnostic functions for short‑circuit, open‑wire, overload and switch‑feedback fault detection; field‑mount enclosure construction.
Functional Features: Thirty‑two software‑configurable discrete circuits eliminate requirement for purchasing different hardware models for input‑only or output‑only field points; each circuit independently set as input, output or output‑with‑feedback mode via Genius host configuration software; comprehensive per‑channel diagnostics detect short‑circuit, overload, open‑wire and feedback mismatch faults; individual‑channel LED status indicators offer direct on‑site visual point‑status observation; Genius fieldbus enables distributed remote I/O operation, placing block physically close to field sensors and actuators; robust mechanical enclosure tolerates harsh factory‑floor environmental conditions; fault diagnostic information transmits back to host PLC over Genius bus for machine alarm and event‑logging processing.
Application Scenarios: Automotive assembly‑line distributed field I/O; material‑handling conveyor system remote sensor‑actuator interface; general manufacturing machinery field‑mount discrete signal collection; legacy GE Genius I/O system maintenance and spare‑part replacement; factory‑floor machine‑cell distributed digital signal acquisition and control.
Performance Parameters: Input signal response delay 1.7 ms typical; output switching delay ≤1 ms; short‑circuit protection activates rapidly upon output‑channel fault events; vibration and shock resistance conform to industrial field‑mount I/O hardware standards; supports continuous long‑term operation within rated environmental limits.
Material Composition: High‑impact black flame‑retardant industrial‑grade plastic field enclosure; FR‑4 multilayer glass‑fiber printed‑circuit board; discrete input/output drive semiconductor components; optocoupler galvanic isolation assemblies; Genius bus communication processing chip; screw‑type field‑wiring terminal blocks; per‑channel SMD LED status indicators; metal mounting brackets for field‑panel installation.
Structural Features: Rugged rectangular field‑mount enclosure; external mounting holes on enclosure corners for direct panel‑surface installation; front‑panel layout of field‑wiring terminal blocks and dense array of per‑channel status LED indicators; Genius bus communication terminals integrated within field‑wiring terminal area; sealed enclosure construction protects internal electronics against shop‑floor dust contamination.
Working Principle: External 18‑30 VDC field power supply energizes IC660EBD020X internal circuits. Host PLC downloads channel‑configuration parameters over Genius fieldbus to define each circuit as input, output or output‑with‑feedback mode. For input‑configured channels, block samples external sensor discrete signal levels and transmits logic‑state data back to host PLC via Genius bus. For output‑configured channels, block receives output‑state commands from host PLC and drives corresponding field‑connected actuators. When output‑with‑feedback mode is active, hardware reads back actual actuator signal state and compares against commanded state. If mismatch, short‑circuit or open‑wire condition occurs, diagnostic flag sets and fault information uploads to host PLC. Per‑channel LED indicators reflect real‑time logic status for every circuit.
Installation Requirements: Mount IC660EBD020X onto solid field‑panel surface using enclosure mounting holes; apply stable 18‑30 VDC field‑power supply; connect field sensors, actuators and Genius bus wiring to screw‑type terminal blocks following official wiring diagrams; separate high‑power actuator wiring from Genius communication signal cables; ensure field‑mount enclosure achieves reliable protective grounding.
Usage Notes: Do not exceed per‑channel 0.5 A maximum output‑current rating; complete all channel configuration download from host PLC before putting field block into operational service; avoid deployment in environments with liquid direct splash, corrosive gas or continuous condensation; tighten field‑wiring terminal screws to specified torque value during installation and periodic maintenance cycles.
