Description

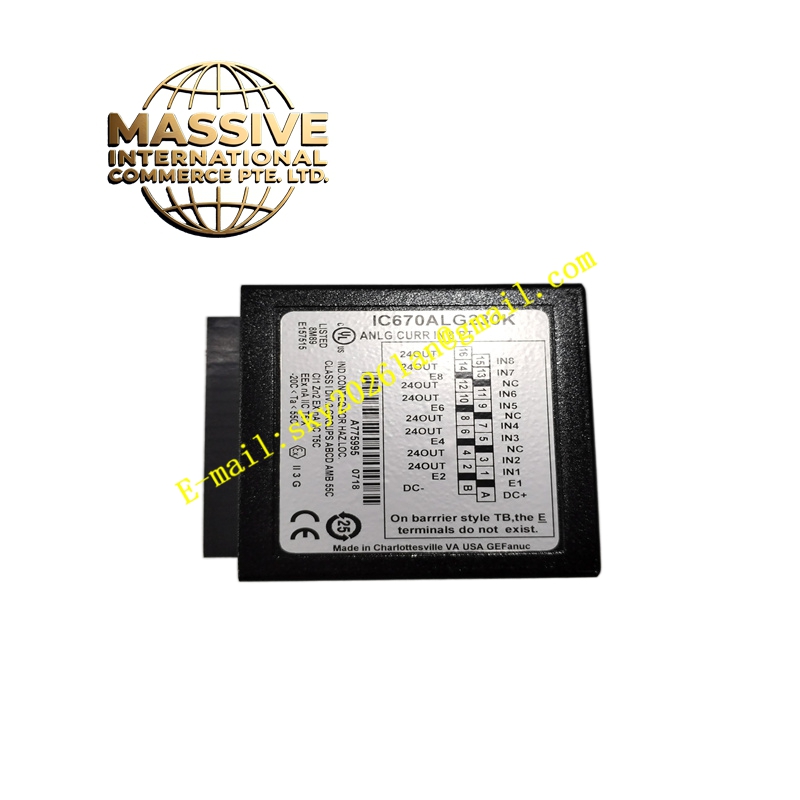

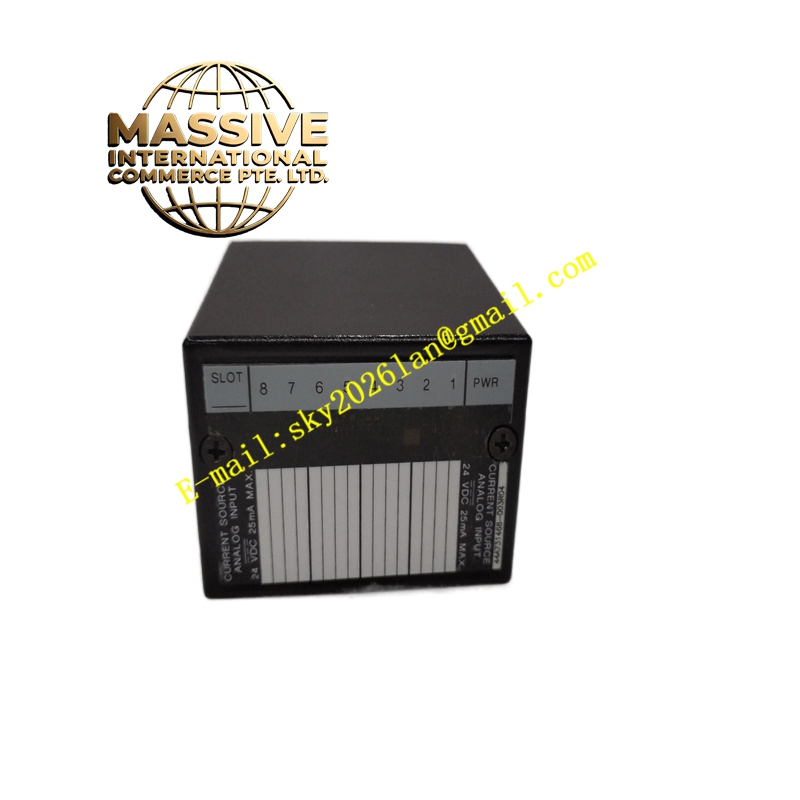

GE IC670ALG230K
Technical Specifications:
| Parameter | Specification |
|---|---|
| Product Line | Field Control Series (Enhanced K-Suffix Version) |
| Module Type | Analog Current Input Module |
| Number of Channels | 8 Single-Ended Inputs |
| Input Type | Current Source Input |
| Input Range | 0-20mA or 4-20mA |
| Digital Resolution | 12-bit |
| Analog Resolution | 5.0μA resolution maintained |
| Compatibility | Enhanced compatibility variants |
Functional Features:
- Maintains 8-channel analog current acquisition capability
- Enhanced digital filtering for noise reduction
- Improved conversion timing characteristics
- Compatible with K-series enhancement accessories
- Updated firmware support for newer PLC systems
- Forward-compatible with enhanced bus interface units
Application Scenarios:
- Modernized manufacturing facilities requiring updated I/O
- Retrofitting existing systems with enhanced modules
- New installations requiring latest specification components
- Applications needing enhanced diagnostic features
- Processes requiring higher signal integrity standards
Performance Parameters:
| Parameter | Value |
|---|---|
| Operating Temperature | -25°C to +70°C (similar to ALG230) |
| Power Requirements | 24VDC powered |
| Conversion Time | Optimized per channel |
| Isolation | Maintained isolation protection levels |
Construction Characteristics:
- Similar physical dimensions to IC670ALG230 base unit
- Updated internal circuitry for enhanced performance
- Backward compatible form factor
- Same terminal block interface configuration
- K-suffix indicates enhanced/revised revision
Installation Requirements:
- Standard Field Control rack installation procedures apply
- Compatible with same terminal block accessories
- Maintain electrical specifications alignment with base model
- Verify bus interface compatibility before installation
- Follow standard safety protocols for module installation
Usage Precautions:
- Confirm software/driver support for K-series modules
- Review enhanced specifications compared to original ALG230
- Ensure firmware matches module variant requirements
- Check compatibility with existing system configurations
- Reference latest documentation for K-series specific guidance
