Description

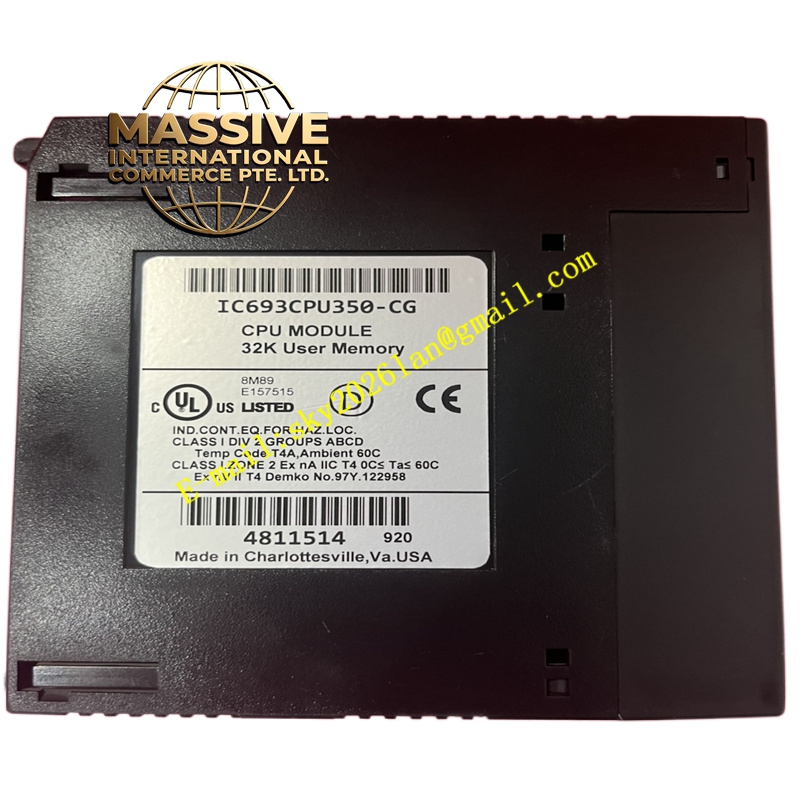

GE IC693CPU350-BC Technical Specifications:
- User Logic Memory: 32 KB of dedicated user program memory.
- Register Memory: Expanded register space for complex data handling.
- Execution Speed: Significantly faster scan times compared to the CPU313, optimized for complex logic.
- I/O Capacity: Supports up to 4096 discrete I/O points and extensive analog I/O mapping.
- Expansion: Supports up to 8 local or remote expansion racks.
- Suffix Code: “-BC” denotes a specific hardware revision and firmware configuration.
Functional Features:
- Floating-Point Math: Built-in hardware support for floating-point arithmetic, enabling complex calculations for process control and PID loops without slowing down basic Boolean logic.
- Sequence of Events (SOE): High-resolution time-stamping capability to accurately record the exact sequence and time of discrete input changes during fault conditions.
- Advanced Communications: Supports high-speed SNP, Modbus RTU, and seamless integration with Genius Bus, Ethernet (via CMM modules), and Profibus-DP.
- Enhanced Diagnostics: Comprehensive fault tables and override capabilities to quickly isolate and troubleshoot field wiring or logic errors.
Application Scenarios:
- Complex process control in chemical and petrochemical plants.
- High-speed automotive assembly lines.
- Large-scale water treatment and distribution networks.
- Systems requiring extensive data logging and precise PID temperature/pressure control.
Performance Parameters:
- Processing Power: Advanced 32-bit architecture handles large data arrays and complex algorithms efficiently.
- Memory Management: Optimized memory allocation reduces scan time for large programs.
- Network Throughput: Capable of managing high-volume data exchanges across multiple communication buses simultaneously.
Material Composition & Structural Characteristics:
- Enclosure: Ruggedized industrial plastic casing designed for DIN rail mounting.
- PCB: High-density surface-mount technology (SMT) components optimized for thermal management.

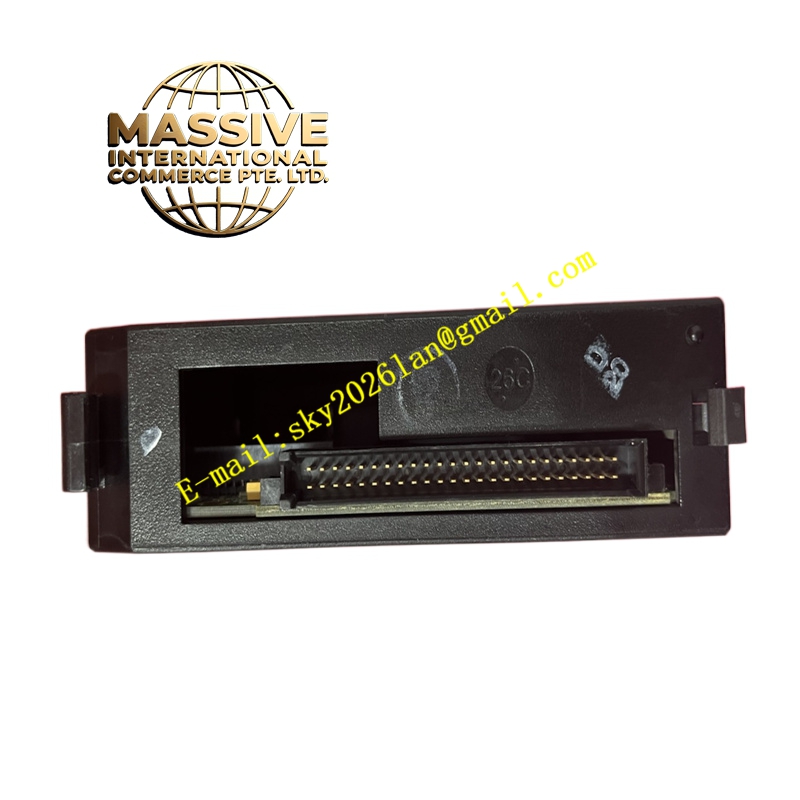

- Ports: Dedicated serial communication ports and backplane interface connectors.
- Status LEDs: Comprehensive front-panel diagnostic LEDs for Run, Fault, Battery, and Communication status.
Working Principle: The CPU350-BC utilizes an advanced microprocessor to execute the user program in a continuous loop. Its enhanced floating-point unit accelerates mathematical operations, while its expanded memory buffer allows for larger data tables and longer programs. The module manages the backplane bus to communicate with local I/O modules and expansion racks, coordinating real-time control across the entire distributed system.
Installation Requirements:
- Baseplate: Must be installed in a compatible Series 90-30 CPU slot on a 5-slot or 10-slot baseplate (e.g., IC693CHS391).
- Power Supply: Requires a high-capacity power supply to support the increased current draw of the CPU and expansion racks.
- Jumper Settings: Verify and configure hardware jumpers for memory protection, serial port termination, and baud rate before applying power.
- Clearance: Maintain at least 1 inch (25.4 mm) of clearance above and below the module for adequate airflow.
Usage Precautions:
- Software Compatibility: Ensure the programming software (Logicmaster 90, VersaPro, or Proficy Machine Edition) is updated to support the CPU350 feature set.
- Battery Backup: The CPU requires a functional battery to maintain the real-time clock and memory during power cycles.
- Grounding: Properly ground the baseplate to ensure noise immunity, especially when utilizing floating-point math and high-speed communications.
- Firmware Updates: Check for available firmware updates to resolve known bugs and enhance system stability.
