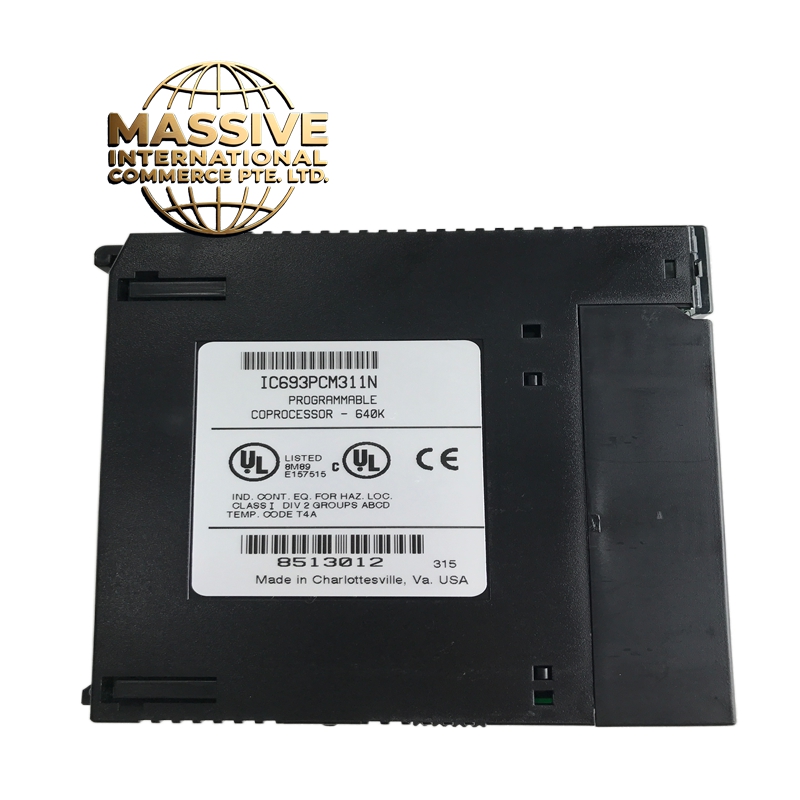

GE IC693PCM311

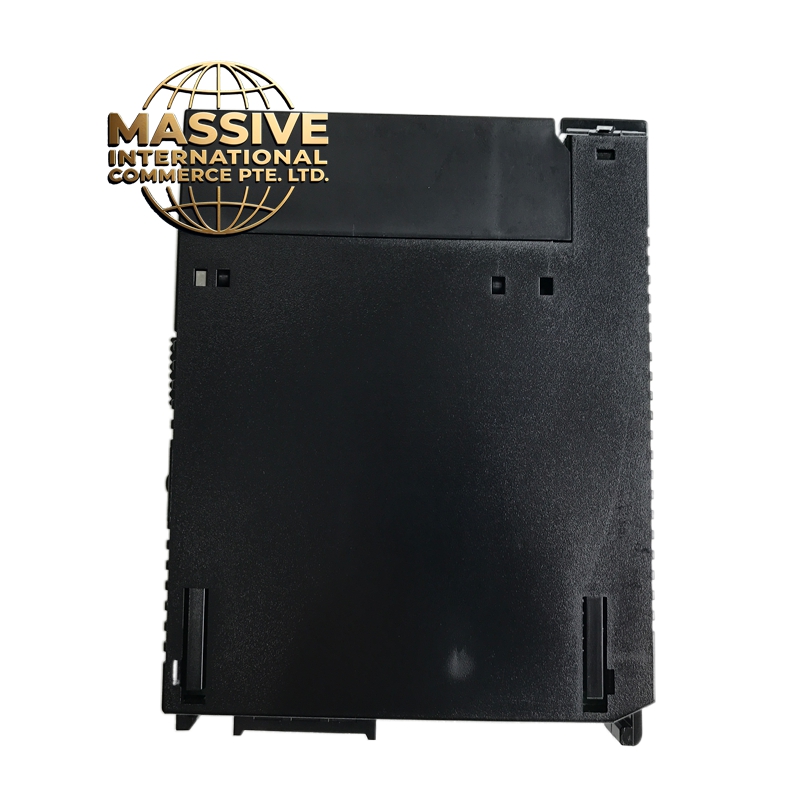

GE IC693PCM311 - Image 2

GE IC693PCM311

  • Product Introduction: This is a PCMCIA memory module for the GE Fanuc 90-30 PLC platform. It provides portable program and data storage using a standard PCMCIA Type II flash memory card. The IC693PCM311 allows users to copy programs, recipes, and data tables from one PLC to another, or to back up programs to a removable card for archival purposes. It supports cards up to 128MB and is commonly used for program distribution, recipe management, and disaster recovery.
Request Quote
Category: SKU: GE IC693PCM311

Description

GE IC693PCM311

  • Technical Specifications:
    • Memory Type: PCMCIA Type II flash memory card
    • Supported Card Sizes: 1MB to 128MB
    • Interface: PCMCIA 16-bit parallel bus
    • Data Transfer Rate: Up to 2MB/s (read), 1MB/s (write)
    • Power Source: Backplane-powered (5VDC)
    • Isolation: 500V RMS optical isolation from backplane
    • Power Consumption: ~1W
    • Operating Temperature: 0°C to 60°C
    • Dimensions: Half-width IC693 module
  • Functional Features:
    • Supports program upload/download via card
    • Compatible with all 90-30 CPUs (IC693CPU360, 363, 372)
    • LED indicators: Power (green), Access (amber — blinks during read/write)
    • Card is hot-insertable (with PLC in RUN mode — program must be in STOP for write)
    • Supports password protection for program security
    • Compatible with Proficy Machine Edition software
  • Application Scenarios:
    • Program distribution across multiple PLCs (copy program from one to many)
    • Recipe management in batch processing (store recipes on card, load as needed)
    • Disaster recovery — backup program to card, store off-site
    • Field firmware updates via card
    • Data logging — export data tables to card for analysis
  • Performance Parameters:
    • Read Speed: Up to 2MB/s
    • Write Speed: Up to 1MB/s
    • Card Life: >100,000 write cycles (flash memory)
    • Data Retention: 10 years (flash memory, no battery needed)
    • Bus: Genius Bus
    • MTBF: >150,000 hours
  • Material Composition:
    • Housing: UL94 V-0 ABS
    • PCB: 4-layer FR-4, conformal coated
    • Connector: PCMCIA Type II slot with eject mechanism
    • Isolation: Opto-isolator for data bus
    • LEDs: High-brightness red/green LEDs
  • Structural Features:
    • Half-width IC693 module
    • Front panel: card slot + 2 LEDs + eject button
    • Backplane edge connector
    • DIN-rail or chassis mount
  • Working Principle:
    • The CPU communicates with the PCMCIA module via the Genius Bus. When a read or write command is issued, the module activates the interface and transfers data to/from the flash card. The opto-isolator separates the card bus from the backplane bus for safety. The Access LED blinks during data transfer. The card retains data without power — no battery needed.
  • Installation Requirements:
    • Install in any IC693 slot (does not need to be adjacent to CPU)
    • Insert PCMCIA card before powering up (or use hot-insert with caution)
    • Format card using PME software before first use
    • Ensure card is Type II (not Type I or III)
    • Use industrial-grade flash card (not consumer-grade — consumer cards have shorter life)
  • Usage Precautions:
    • Use industrial-grade PCMCIA cards only — consumer cards fail prematurely in industrial environments
    • Do not remove card during write operation — corrupts data
    • Format card in the PLC before use — do not use pre-formatted cards from PC
    • Protect card from static discharge — use anti-static wrist strap when handling
    • Store cards in protective case when not in use
    • Do not exceed 128MB card size — not supported
    • For program write, PLC must be in STOP mode (RUN mode allows read only)
