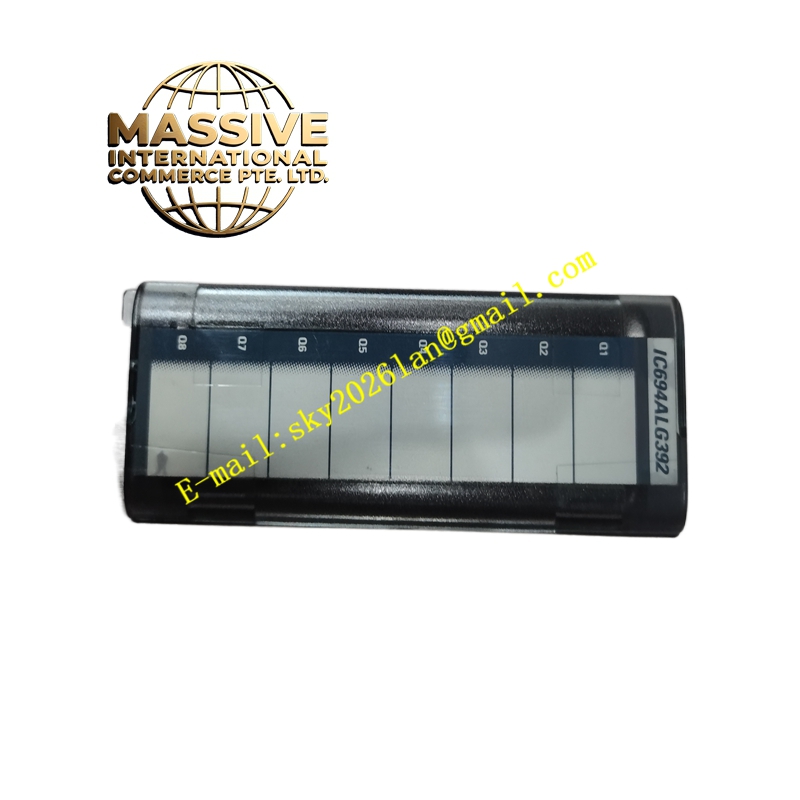

GE IC694ALG392 Technical Specifications:
- System Compatibility: PACSystems RX3i and RX7i platforms.
- Output Channels: 8 independent channels with 16-bit resolution.
- Signal Types: Supports 4-20mA, 0-20mA, ±10V, and 0-10V output ranges.
- Accuracy: Range accuracy of ±0.1%.
- Response Rate: Channel refresh rate of 13ms per channel with a sampling rate of up to 100 times per second.
- Isolation: 250V AC continuous optical isolation per channel.
Functional Features:
- Flexible Configuration: Each channel can be independently configured as current or voltage via software, eliminating the need for hardware jumpers.
- Advanced Diagnostics: Features open-circuit and short-circuit fault detection, specifically enhanced with open-circuit detection for 4-20mA loops to prevent system downtime.
- Data Continuity: Supports power-loss hold functionality using a combination of FlashROM and an onboard battery to maintain output states during power interruptions.
- Hot-Swappable: Supports live insertion and removal to minimize system downtime during maintenance.
Application Scenarios:
- Precision control of control valves and dampers in chemical and petrochemical plants.
- Speed and torque regulation of variable frequency drives (VFDs) in manufacturing.
- Multi-parameter coordinated control in energy management and environmental protection systems.
Performance Parameters:
- Alarm Capabilities: Supports high and low limit alarms for proactive process monitoring.
- Electromagnetic Compatibility: High immunity to electromagnetic interference, ensuring stable signal transmission in noisy industrial environments.
- Power Consumption: Draws 120mA from the 5VDC backplane bus and 65mA from the external 24VDC user power supply.
Material Composition & Structural Characteristics:
- Physical Interface: Box-style terminal design compatible with AWG 14-22 wire gauges for secure field wiring.
- Dimensions: Compact form factor measuring approximately 115mm x 100mm x 25mm.
- Enclosure: Industrial-grade ruggedized housing designed for DIN rail or screw mounting within standard control cabinets.
Working Principle: The module receives digital control values from the RX3i CPU over the PCI backplane bus. An onboard digital-to-analog converter (DAC) translates these values into precise analog voltages or currents. The internal isolation circuitry ensures that field-side electrical noise does not interfere with the backplane logic, while the diagnostic circuitry continuously monitors the health of each output loop.
Installation Requirements:
- Power Supply: Ensure the external 24VDC user power supply is correctly wired to provide the necessary current for the connected loads.
- Wiring: Use shielded twisted-pair cables for analog outputs and ground the shield at the cabinet end to prevent ground loops.
- Software Configuration: Utilize Proficy Machine Edition software to configure the signal type, scaling, and fault response for each channel.
Usage Precautions:
- Load Matching: Verify that the connected load impedance falls within the specified limits for voltage and current modes to prevent signal distortion.
- ESD Protection: Always use electrostatic discharge (ESD) protection when handling the module to prevent damage to the sensitive 16-bit DAC components.
- Battery Maintenance: Periodically check the status of the onboard data retention battery to ensure power-loss hold functionality remains active.
