GE IC695CPU315 Technical Specifications:
- Processor Architecture: Advanced 300 MHz Intel microprocessor core.
- Memory Capacity: Expanded user RAM and non-volatile Flash memory (typically 10MB RAM / 10MB Flash or higher depending on exact revision).
- Embedded Communications: Dual embedded serial ports (RS-232 and RS-485) for legacy device integration.
- Network Expansion: Dedicated expansion slots for high-speed Ethernet (e.g., IC695ETM001) and fieldbus communication modules.
- I/O Addressing: 32 Kbits Discrete I/O and 32 Kwords Analog I/O addressing space.
Functional Features:
- High-Speed Data Throughput: Optimized backplane communication for rapid data exchange between the CPU and intelligent I/O modules.
- Symbolic Variable Support: Allows for auto-locating symbolic variables, simplifying complex program architecture and improving code readability.
- Redundancy Readiness: Capable of supporting redundant power supplies and communication paths to maximize system uptime.
- Security Features: Software-based password protection for programs and configuration data to prevent unauthorized modifications.
Application Scenarios:
- Large-scale manufacturing plants with distributed I/O architectures.
- Water and wastewater treatment facilities requiring extensive analog control.
- Automotive assembly lines with complex motion control integration.
- Food and beverage processing with strict batch tracking requirements.
Performance Parameters:
- Boolean Execution: Sub-millisecond execution times for 1K Boolean instructions.
- Data Handling: Efficient management of large arrays, strings, and user-defined data structures.
- Scan Time Consistency: Highly deterministic scan times ensuring precise real-time control.
- Memory Referencing: Access to large memory areas via %W reference tables for flexible data storage.
Material Composition & Structural Characteristics:
- Chassis Integration: Seamless integration into standard RX3i DIN-rail or panel-mount enclosures.
- Thermal Design: Integrated heat dissipation paths to manage processor thermal output.

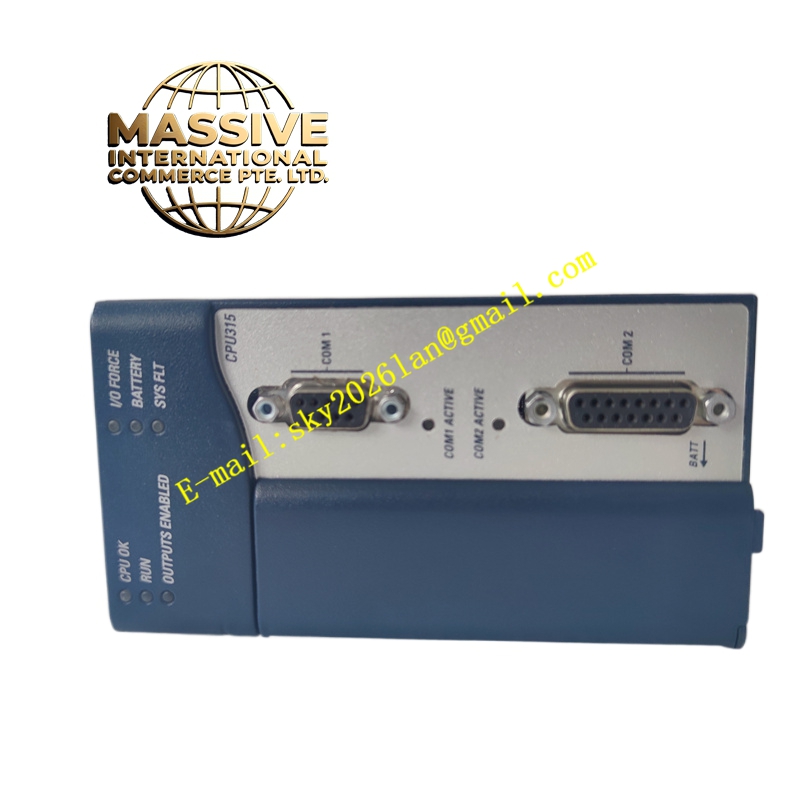

- Indicator Panel: Eight diagnostic LEDs for quick visual troubleshooting of RUN, FAULT, BATTERY, and COM states.
- Durable Connectors: High-cycle rated backplane connectors designed to withstand industrial vibration.
Working Principle: The IC695CPU315 executes control algorithms by fetching instructions from its Flash memory and processing data in its high-speed RAM. It communicates with the I/O subsystem via the PCI/Serial backplane, reading physical inputs and writing logical outputs. Simultaneously, it manages network traffic through its embedded serial ports and expansion Ethernet modules, ensuring seamless data flow between the controller, HMIs, and enterprise-level SCADA systems.
Installation Requirements:
- Slot Allocation: Install in the leftmost CPU slot of the RX3i universal backplane.
- Power Budget: Verify that the selected power supply module can provide the required 3.3V and 5V current draw for the CPU and all installed expansion modules.
- Wiring: Connect RS-232/RS-485 cables to the front-facing ports, ensuring proper shielding and grounding for noise immunity.
- Software Setup: Use Proficy Machine Edition Logic Developer (version 5.0 or higher) for hardware configuration and logic deployment.
Usage Precautions:
- Firmware Compatibility: Always verify that the CPU firmware version is compatible with the installed I/O modules and programming software to prevent communication errors.
- Battery Maintenance: Proactively replace the lithium battery when the BATTERY LED begins to flash to prevent RAM data corruption.
- Network Isolation: When using Ethernet expansion modules, ensure proper network segmentation to prevent broadcast storms from impacting controller performance.
- Forced Variables: Clear all forced I/O variables after troubleshooting to prevent unintended machine behavior during normal operation.
