Description

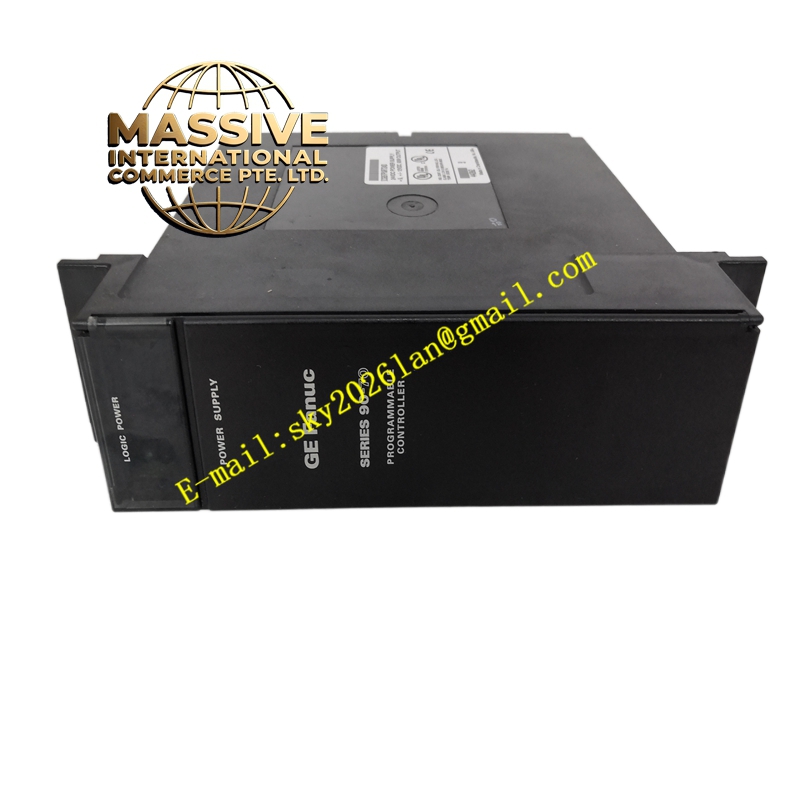

GE IC697PWR724 Technical Specifications:
- Input Voltage Range: 90–264V AC (47–63Hz).
- Output Configuration: +5V DC (up to 20A or higher depending on specific variant), +12V DC (2A), -12V DC (1A).
- Total Output Power: Typically 150W or higher.
- Input Current: Higher input current rating to support increased output capacity.
Functional Features:
- High +5V Capacity: Specifically engineered to support modern, high-speed CPUs and large I/O expansions.
- Advanced Thermal Design: Enhanced heat sinking and fanless convection cooling for higher wattage.
- Robust Protection: Upgraded overcurrent and short-circuit protection thresholds to handle peak inrush loads.
- Backward Compatibility: Fits into standard Series 90-70 power slots.
Application Scenarios:
- Complex process control systems with high-density I/O racks.
- Motion control applications utilizing multiple servo communication modules.
- Large-scale discrete manufacturing with extensive backplane communication traffic.
Performance Parameters:
- Load Regulation: Maintains strict voltage tolerance even at maximum rated continuous load.
- Inrush Current Limiting: Soft-start circuitry prevents tripping upstream facility breakers during power-up.
- Efficiency: Optimized for high-load efficiency to minimize wasted energy as heat.
- MTBF: High reliability rating suited for continuous heavy-duty operation.
Material Composition & Structural Characteristics:
- Form Factor: Single-slot Series 90-70 form factor.
- Internal Components: Higher-rated power semiconductors and capacitors compared to 100W models.
- Indicators: Standard LED diagnostic array for quick visual troubleshooting.
- Mechanical: Reinforced internal PCB mounting to withstand industrial vibration.
Working Principle: Utilizes a higher-capacity switching power supply topology with larger magnetic components. The feedback control loop is tuned to maintain stability under heavier loads, ensuring that the +5V rail remains stable even when the backplane experiences dynamic current spikes from high-speed CPU operations.
Installation Requirements:
- Power Budgeting: Calculate total backplane power consumption meticulously before installation to ensure the 724 module is required.
- Ventilation: Due to higher power dissipation, ensure unrestricted airflow around the module.
- Wiring: Use heavier gauge wire for input connections if specified by the installation manual.
- Mounting: Ensure the rack is securely grounded before sliding the module into place.
Usage Precautions:
- Do Not Overload: Never exceed the maximum +5V ampere rating; doing so will trigger protective shutdown.
- Cooling: Do not install blanking plates directly adjacent to the power supply if it restricts exhaust airflow.
- Replacement: Ensure the replacement module matches the exact IC697PWR724 part number to maintain system power margins.
- Diagnostics: Monitor PLC power supply status bits to detect early signs of overload or thermal stress.
