Name: GE IS200VCMIH2BEE
Brand: GE
SKU: GE IS200VCMIH2BEE

GE IS200VCMIH2BEE

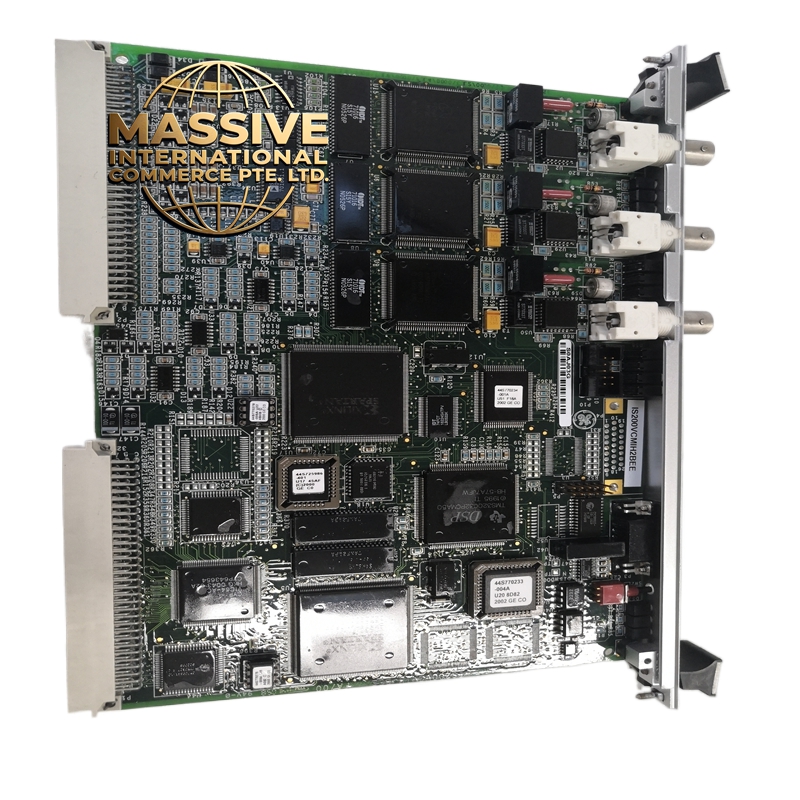

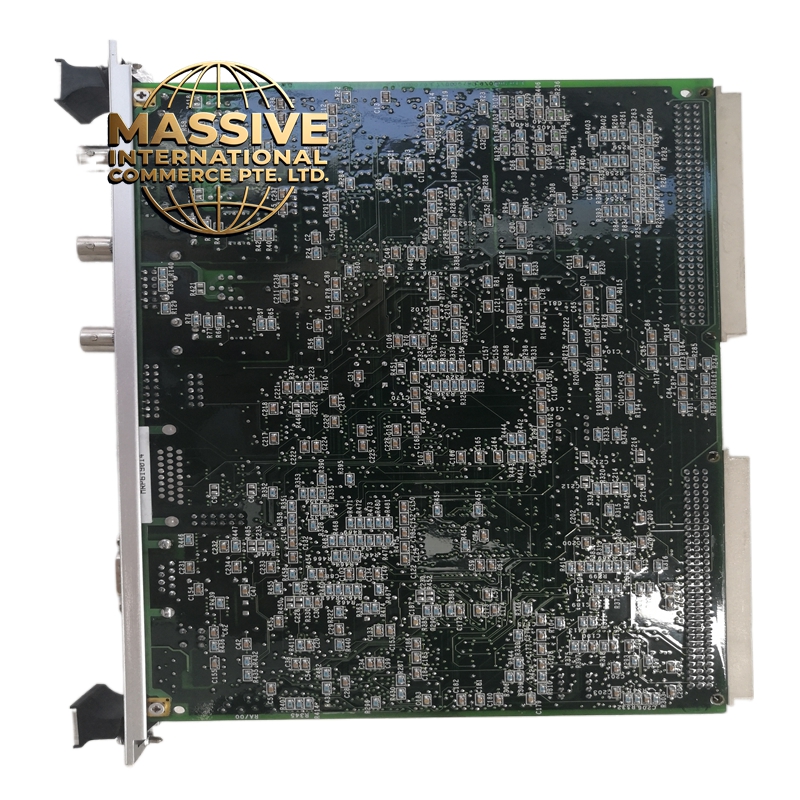

Product Overview The IS200VCMIH2BEE is a VME Communication Interface Card designed for the Mark VI Speedtronic turbine control system. It serves as the primary communication gateway between the VME-based processor and the I/O terminal boards, managing data exchange, system synchronization, and diagnostic functions across the control network.

Request Quote

Category: GE SKU: GE IS200VCMIH2BEE

Description

GE IS200VCMIH2BEE

Technical Specifications

Parameter	Specification
Function	VME Bus Communication Controller
System Compatibility	Mark VI Speedtronic
Bus Interface	VME64 standard
Communication Ports	Multiple IONet ports
Processor Interface	Direct connection to VME backplane
Data Transfer Rate	High-speed serial communication
Board Dimensions	Standard 6U VME form factor
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% non-condensing
Power Consumption	< 15W typical

Functional Features

IONet Master Controller: Manages the IONet network connecting all terminal boards to the processor
Data Concentration: Collects and distributes I/O data between the processor and field devices
System Synchronization: Provides timing signals for coordinated control actions
Diagnostic Reporting: Monitors network health and reports communication faults
Redundancy Support: Supports redundant communication paths for critical applications
Real-Time Operation: Ensures deterministic data transfer for control loop timing

Structural Characteristics

6U VME form factor with front panel I/O connectors
High-speed digital signal processors for network management
Fiber optic or copper network interfaces
Status LED indicators for network activity and faults
Ruggedized design for continuous industrial operation

Working Principle The VCMI card operates as the master controller for the IONet communication network. It continuously polls all connected terminal boards to read input status and write output commands. The card maintains a real-time database of all I/O points, which is accessed by the main processor through the VME bus. It handles network arbitration, error detection, and automatic retry mechanisms to ensure reliable data transfer. The card also manages system-wide time synchronization, ensuring all control actions are properly coordinated.
