Name: GE MM2-PD-1-2-120
Brand: GE
SKU: GE MM2-PD-1-2-120

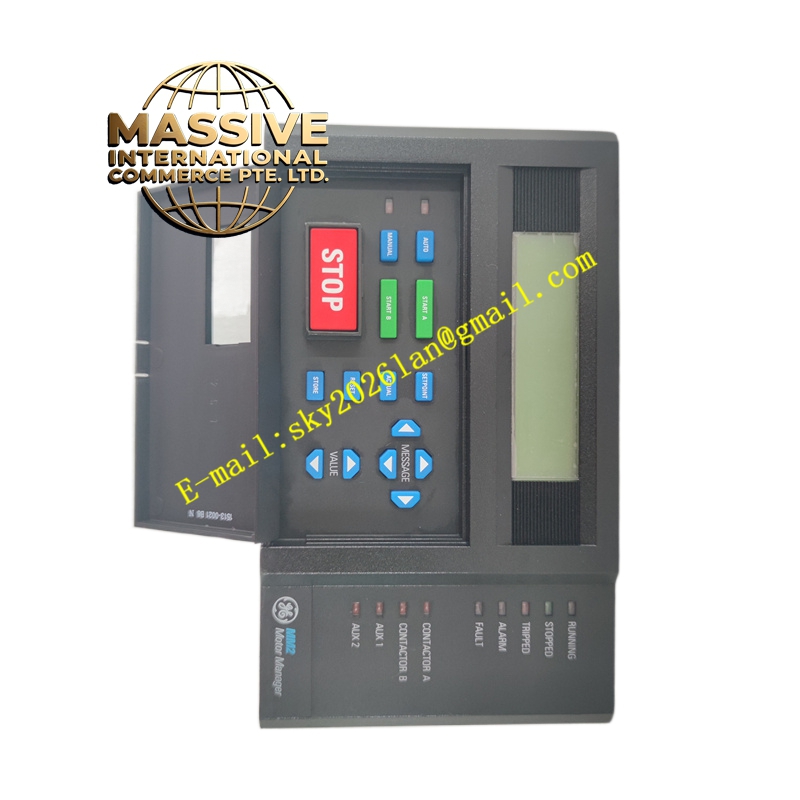

GE MM2-PD-1-2-120

Product Introduction: The GE MM2-PD-1-2-120 is an intelligent Motor Management and Protection Module from the GE Multilin MMII series. It provides comprehensive motor protection against overload, short circuit, overheating, phase imbalance, and other fault conditions, while offering real-time monitoring, data acquisition, and remote diagnostic capabilities for industrial motor applications.

Request Quote

Category: GE SKU: GE MM2-PD-1-2-120

Description

GE MM2-PD-1-2-120

Technical Specifications:

Series: GE Multilin MMII
Rated Current: 120 A
Rated Voltage: Typically 400 V, 3-phase, 50/60 Hz
Working Voltage: 24 V DC (control supply)
Protection Functions: Overcurrent, overvoltage, undervoltage, overheating, torque overload, phase imbalance, short circuit
Communication Interfaces: Modbus, Profibus, Ethernet/IP
Display: Integrated display panel for local monitoring and configuration
Operating Temperature: Industrial range per GE Multilin specifications

Functional Features:

Multi-dimensional protection integrating current, power factor, temperature, and frequency monitoring
Real-time data acquisition and motor status monitoring
Remote diagnostic capabilities via industrial communication protocols
Intelligent motor management with configurable protection curves
Integrated display for local parameter viewing and adjustment
Event recording and fault diagnostics

Application Scenarios:

Industrial automation systems for motor-driven equipment protection
Manufacturing line motor control and monitoring
Power plant auxiliary motor protection
Pump, fan, and compressor motor management
Process industry motor protection requiring remote diagnostics

Performance Parameters:

120 A rated current for medium-voltage motor applications
Fast response to fault conditions to protect motors and connected equipment
High reliability for continuous operation in industrial settings
Configurable protection parameters to suit different motor characteristics

Material and Structural Characteristics:

Industrial-grade enclosure with integrated display panel
Robust terminal blocks for power and control wiring
PCB with conformal coating for environmental protection
Compact form factor for panel or switchgear mounting

Working Principle: The module continuously monitors motor current, voltage, temperature, and other parameters. When measured values exceed configured thresholds, the module initiates protective actions such as tripping the motor contactor or issuing alarms. It communicates status, measurement data, and event records to supervisory systems via Modbus, Profibus, or Ethernet/IP. Installation Requirements:
