Description

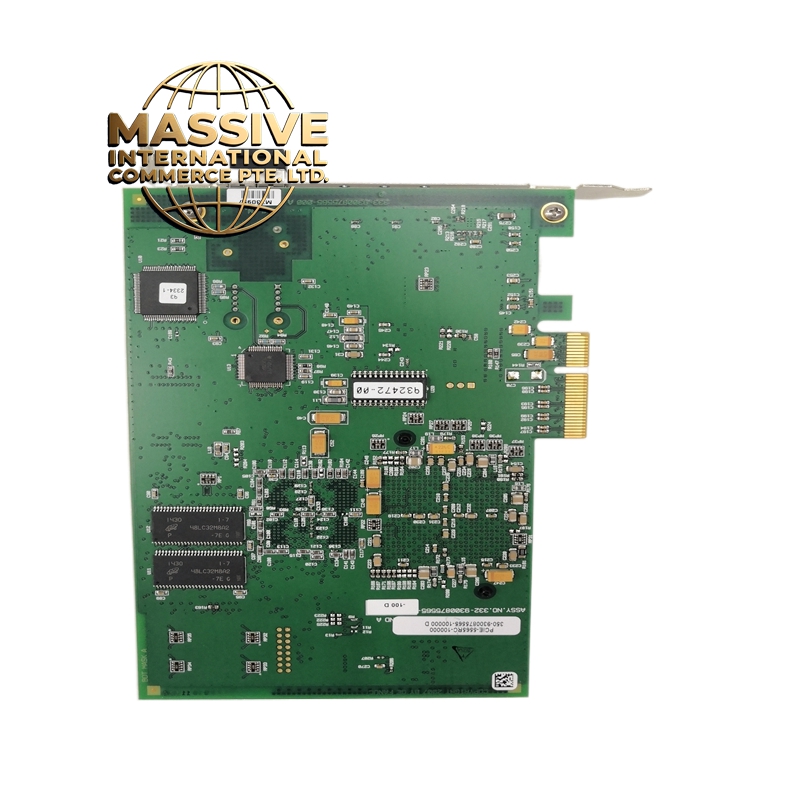

GE PCIE-5565RC-100000 Technical Specifications:
- Bus Interface: PCI Express (PCIe).
- Network Speed: 100 Mbps or higher reflective memory network.
- Memory: On-board SRAM for data storage and reflection.
- Latency: Microsecond-level data transfer latency.
- Topology: Supports ring, star, and daisy-chain configurations.
Functional Features:
- Deterministic Performance: Guaranteed data delivery within specified time limits.
- Automatic Reflection: Data written to one node is automatically reflected to all other nodes.
- Redundancy Support: Dual-port options for redundant network paths.
- OS Compatibility: Drivers for Windows, Linux, QNX, and VxWorks.
Application Scenarios:
- Redundant Mark VIe turbine control systems.
- Real-time simulation and hardware-in-the-loop (HIL) testing.
- Multi-computer data acquisition and synchronization.
- High-speed industrial process control networks.
Material Composition & Structural Characteristics:
- PCB: High-speed PCIe board with impedance-controlled traces.
- Connectors: PCIe edge connector and fiber optic or copper network ports.
- Components: High-speed SRAM, network controller ASIC, and optical transceivers.
- Bracket: Standard PCIe bracket for rack mounting.
Working Principle: When a node writes data to its local reflective memory, the network controller automatically broadcasts the data to all other nodes on the
