Description

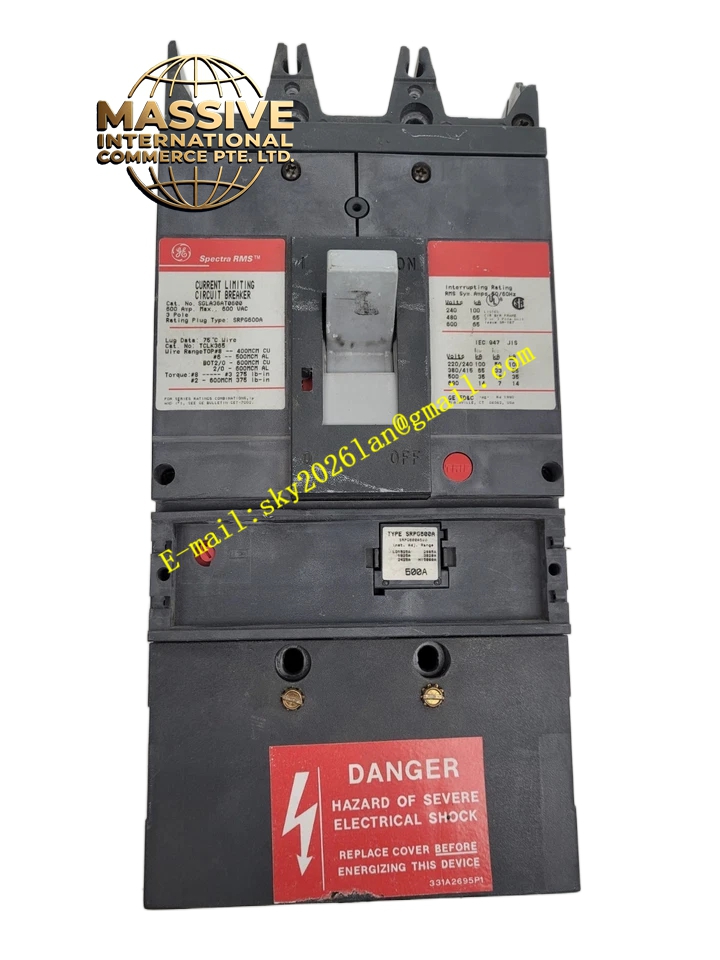

GE SGLA36AT0600
Technical Specifications
- Product Type: Molded Case Circuit Breaker
- Voltage Rating: 600V AC
- Current Rating: As specified by model configuration
Functional Features
- Overcurrent Protection: Thermal-magnetic trip mechanism for overload and short circuit protection.
- Circuit Isolation: Provides safe disconnect for maintenance.
- High Interrupting Capacity: Rated for high fault current interruption.
Application Scenarios
- Power Distribution: Main and branch circuit protection.
- Motor Control: Motor circuit protection and switching.
- Industrial Panels: Integration into industrial control panels.
Performance Parameters
- Interrupting Rating: High interrupting capacity for fault protection.
- Trip Characteristics: Thermal-magnetic trip curve.
Material Composition
- Thermoplastic housing with silver-alloy contacts.
Structural Characteristics
- Form Factor: Standard molded case breaker form factor.
- Mounting: Bolt-on or plug-in mounting options.
Working Principle
Uses thermal element for overload protection and magnetic element for short circuit protection, automatically opening contacts when fault current exceeds threshold.
Installation Requirements
- Install in compatible panelboard with proper torque specifications.
- Ensure adequate clearance for arc flash safety.
Usage Precautions
- Never exceed rated voltage or current.
- Perform regular maintenance and testing.
