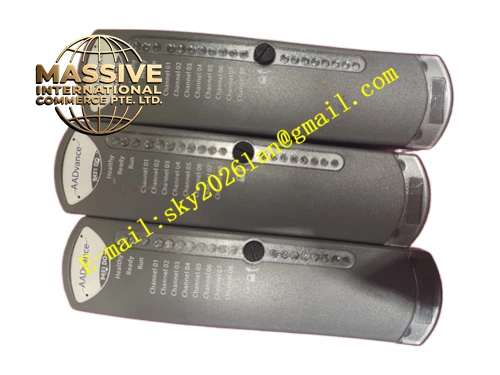

ICS Triplex 9401

ICS Triplex 9401

Product Introduction: The 9401 is an 8-channel isolated digital input module designed for high-integrity industrial automation and safety systems within the ICS Triplex AADvance platform. This module ensures reliable signal acquisition and fault detection for critical control applications, translating external discrete sensor data into the controller’s safety logic. It supports a wide range of architectures from non-safety applications to SIL 3 certified fault-tolerant configurations.

Request Quote
Category:

Description

ICS Triplex 9401

Technical Specifications:

  • Input Channels: 8 isolated digital inputs
  • Input Voltage: 24 VDC nominal
  • Operating Voltage Range: 18 to 32 VDC
  • Power Consumption: 4 watts
  • Signal Type: Discrete signals from field devices
  • Response Time: Less than 1 ms
  • Dimensions: Approximately 2.2 cm x 12.4 cm x 12.6 cm
  • Weight: Approximately 0.2 kg
  • Operating Temperature: -20°C to +70°C
  • Storage Temperature: -40°C to +85°C

Functional Features:

  • 8 fully isolated digital input channels
  • Channel-to-backplane and channel-to-channel isolation
  • Photoelectric isolation preventing signal crosstalk
  • Comprehensive line monitoring per channel
  • Detection of open circuit and short circuit field wiring faults
  • Configurable voltage bands with multiple switching thresholds
  • Front-panel status LEDs for each channel
  • Scalable architecture support (Simplex, Dual, or TMR)
  • Compatible with T9801 digital input termination assembly

Application Scenarios:

  • Emergency stop signal monitoring
  • Limit switch position detection
  • Safety interlock status acquisition
  • Motor starter feedback monitoring
  • Process safety instrumented systems

Performance Parameters:

  • TÜV Certified up to IEC 61508 SIL 3
  • High noise immunity through full isolation
  • Fast input response time for safety-critical applications
  • Accurate voltage measurement with ±0.5 V precision
  • Reliable operation in harsh industrial environments

Material Composition:

  • Industrial-grade electronic components
  • Photoelectric isolation devices
  • High-quality PCB construction
  • Durable industrial housing
  • Conformal coating option available

Structural Characteristics:

  • Compact 8-channel design
  • Standard AADvance module form factor
  • Front-panel LED array for input status
  • Isolated channel architecture
  • Hot-swappable for online replacement

Working Principle: Each input channel receives 24 VDC discrete signals from field devices such as switches and sensors. The photoelectric isolation barrier separates field circuits from backplane logic, preventing ground loops and transient damage. Internal circuitry monitors line integrity, detecting open circuits and short circuits. The module reports input states to the processor with high-speed response times suitable for safety interlock applications.

Installation Requirements:

  • Install in T9300 I/O base unit
  • Mate with T9801 simplex termination assembly
  • Verify field device voltage compatibility
  • Ensure proper grounding of field wiring
  • Configure input thresholds via AADvance Workbench

Usage Precautions:

  • Verify input voltage range matches field devices
  • Do not exceed 32 VDC maximum input voltage
  • Monitor diagnostic indicators for wiring faults
  • Follow ESD precautions during handling
  • Ensure proper connector seating
  • Maintain clean environment for reliable operation
