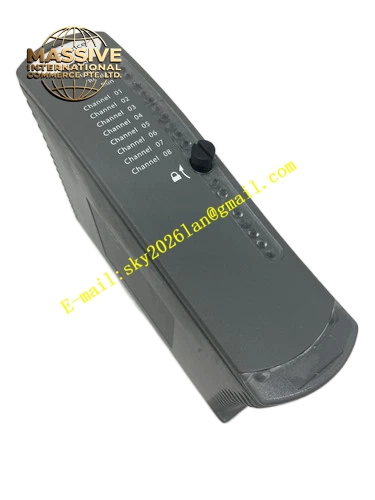

Product Introduction: The 9431 is a high-integrity 8-channel isolated analogue input module engineered for the ICS Triplex AADvance safety controller platform. This module is purpose-built to process critical continuous parameters across hazardous industrial areas, measuring process currents in the range of 0 mA to 24 mA with 4-20 mA nominal operation. Each channel features robust galvanic and signal isolation barriers, shielding the core system from destructive field loop faults while delivering high-accuracy analog metrics.

Request Quote
Category:

Description

ICS Triplex 9431

Technical Specifications:

  • Channel Capacity: 8 fully isolated analog input channels
  • Nominal Signal Input Range: 4 mA to 20 mA DC
  • Maximum Measurement Spectrum: 0 mA to 24 mA DC
  • Analog Resolution: 15-bit resolution (Least Significant Bit: 0.98 µA)
  • Signal Isolation: Withstands up to ±1.5 kV DC for 1 minute (channel-to-channel and field-to-logic)
  • Power Dissipation: 3.3 W (11.3 BTU/hr) on redundant +24 VDC nominal system lines
  • Dimensions: 166 mm x 42 mm x 118 mm (6.5 in x 1.65 in x 4.65 in)
  • Weight: 280 g (10 oz)
  • Operating Temperature: -10 to 50 °C standard; extended to 70 °C available

Functional Features:

  • 8 fully isolated analog input channels with individual isolation barriers
  • 15-bit high-resolution analog-to-digital conversion
  • 5 configurable voltage bands per channel with 8 distinct switching thresholds
  • Hysteresis management for noise immunity
  • HART protocol pass-through support (Command #03) for field device diagnostics
  • Line monitoring capabilities for open circuit and short circuit detection
  • Seamless architecture degradation from 2oo3D through 1oo2D to 1oo1D voting
  • Front-panel LED indicators for channel and module status
  • Compatible with T9831 (Simplex), T9832 (Dual), and T9833 (TMR) termination units

Application Scenarios:

  • Process variable monitoring in chemical plants
  • Pressure and temperature measurement in oil and gas
  • Flow monitoring in pipeline systems
  • Level measurement in storage tanks
  • Safety instrumented systems requiring SIL 3 compliance

Performance Parameters:

  • TÜV Certified up to IEC 61508 SIL 3 application parameters
  • High accuracy with 0.98 µA resolution
  • Fast response time for safety-critical loops
  • Excellent linearity and ultra-low long-term temperature drift
  • Robust EMI immunity through galvanic isolation

Material Composition:

  • Industrial-grade electronic components
  • High-precision ADC converters
  • Galvanic isolation barriers
  • Conformal coating option available for harsh environments
  • Durable PCB construction

Structural Characteristics:

  • Compact single-width module form factor
  • Front-panel status LEDs for each channel
  • Standard AADvance module dimensions
  • Hot-swappable design for online replacement
  • Compatible with AADvance Workbench software configuration

Working Principle: Each of the 8 channels independently converts analog current signals (4-20 mA) into digital values using 15-bit ADC converters. The galvanic isolation barriers prevent ground loops and protect against high-voltage transients. Configurable voltage bands and switching thresholds enable precise line monitoring, detecting open circuits, short circuits, and out-of-range conditions. HART commands pass through the module for intelligent field device communication.

Installation Requirements:

  • Install in T9300 I/O base unit
  • Mate with appropriate termination assembly (T9831, T9832, or T9833)
  • Ensure 24 VDC power supply is stable
  • Configure channels via AADvance Workbench software
  • Verify field wiring polarity for current loop signals

Usage Precautions:

  • Do not exceed 24 mA maximum input current
  • Verify termination assembly compatibility before installation
  • Monitor diagnostic indicators for wiring fault detection
  • Follow ESD precautions during module handling
  • Ensure proper shield grounding for noise immunity
  • Configure voltage bands appropriate for application requirements
