Description

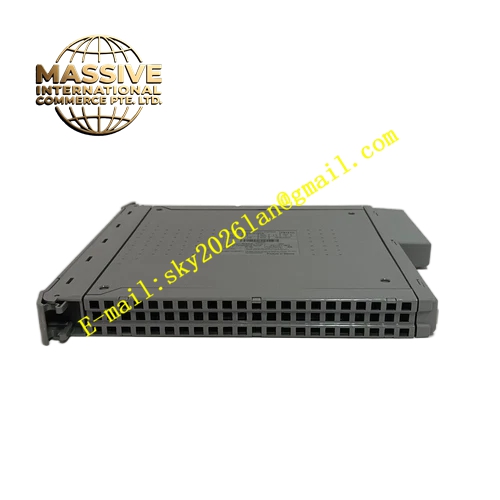

ICS Triplex T8151C
Technical Specifications & Performance Parameters:
- Power Supply: 20 ‑ 32 V DC, backplane power feeding, nominal 24 V DC
- Power Consumption: 5 W typical
- Communication Ports: Dual Ethernet ports, four configurable serial ports (RS‑232 / RS‑422 / RS‑485)
- Supported Protocols: Modbus TCP, Modbus RTU, OPC‑UA, Trusted proprietary inter‑rack protocol
- Operating Temperature: ‑20 °C ~ +60 °C
- Storage Temperature: ‑40 °C ~ +85 °C
- Safety Certification: SIL 3, CE, UL
- Weight: 0.50 kg
- Form Factor: Standard 3U rack plug‑in module
Functional Features:
- Triple Modular Redundancy communication processing circuit, single‑channel communication component failure will not interrupt data transmission
- Redundant network link support, automatic link switching upon one communication path failure
- Complete channel‑level diagnostic for each communication port, report cable breakage and port fault
- Hot‑swap support; module replacement does not interrupt main processor safety logic execution
- Front‑panel LED indicators show port link status, data transmitting/receiving status and module fault status
- Realize time‑consistent data interaction between main rack and remote expander racks
- Isolation design between external communication circuit and internal safety bus to prevent external disturbance from invading safety domain
- Support system time synchronization forwarding for whole‑plant SOE event alignment
Working Principle: Internal three‑way redundant communication processing circuit receives and sends data simultaneously. Valid data is selected through voting mechanism and transmitted to system inter‑module bus. Each physical communication channel carries out real‑time signal quality detection. When one communication path fails, system automatically switches to redundant channel without data loss. External protocol data is converted into internal Trusted bus data format and delivered to processor module.
Material Composition & Structural Characteristics:
- Outer shell: High‑strength aluminum alloy shielding housing for electromagnetic interference suppression
- Circuit board: Multi‑layer FR‑4 PCB with isolation transformer on communication circuit
- Connector: Gold‑plated backplane connector; front‑panel industrial RJ45 and serial terminal interfaces
- Front panel: Flame‑retardant plastic with LED indicator window, IP20 protection grade
- Plug‑in card‑type structure for rack slot installation
Installation Requirements:
- Insert to designated communication slot of Trusted rack chassis and lock front‑panel screws
- All external network and serial cables must use shielded industrial communication cables
- Communication cable shielding layer connects to cabinet ground bus bar, single‑end grounding
- Keep away from high‑power frequency‑conversion equipment and high‑voltage power cables to reduce electromagnetic interference
- Working ambient temperature maintains within ‑20 °C ~ +60 °C
- Cabinet ground resistance less than 4 Ω
Application Scenarios:
- Data exchange between SIS safety system and DCS distributed control system
- Connect safety system to HMI operation monitoring station
- Remote data interaction with third‑party monitoring equipment
- Communication bridge between main rack and geographically separated expander I/O racks
- Plant‑wide SOE event time synchronization network access
Usage Notes:
- Do not plug or pull out the module when communication port carries live external signals
- Keep communication cable intact; avoid sharp bending and mechanical extrusion
- Do not operate beyond working temperature range
- After module replacement, verify communication link status and data consistency
- Isolate external communication network from safety control network with firewall as required by functional‑safety specification
- No user‑repairable parts inside module, shell disassembly is forbidden
