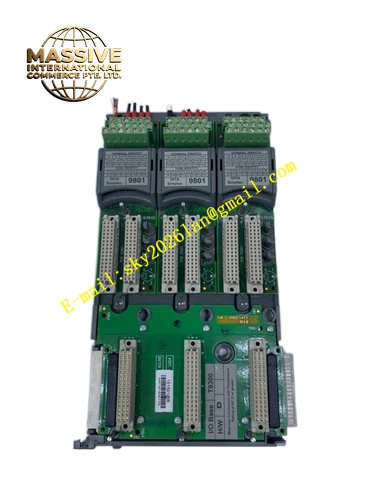

ICS Triplex T8448
Technical Specifications & Performance Parameters:
- Power Supply: 20‑32 V DC backplane power input, nominal 24 V DC
- Channel Count: 48 digital output channels
- Output Signal Type: 24 V DC discrete output
- Per‑channel Drive Capacity: Maximum 0.5 A per channel
- Operating Temperature: ‑40 °C ~ +70 °C
- Storage Temperature: ‑40 °C ~ +85 °C
- Safety Certification: TÜV IEC 61508 SIL 3
- Power Consumption: 24 W maximum
- Weight: 1.12 kg
- Form Factor: Standard 3U rack plug‑in module
Functional Features:
- TMR triple‑redundant output driving circuit, hardware voting for output command
- Per‑channel load diagnosis function, detect field load open‑circuit and short‑circuit fault
- Hot‑swap support; online module replacement
- Configurable output safety fail‑safe state under fault condition
- Front‑panel LED array shows channel output status, module running status and fault status
- Time‑stamped channel‑level fault information upload to system fault historian
- Galvanic isolation between field output circuit and internal safety bus
- Over‑current protection for each output channel, automatically cut‑off channel under short‑circuit condition
Working Principle: Safety processor sends digital output command to T8448 via inter‑module bus. Three‑way redundant driving circuit receives same command signal. Hardware voting circuit confirms valid output state and drives corresponding field output channel. On‑board diagnostic circuit monitors output loop current continuously. When load open‑circuit or short‑circuit fault occurs, module triggers fault flag and limits output current to protect circuit. Single driving‑circuit path failure is isolated automatically, module maintains correct output state according to voting result.
Material Composition & Structural Characteristics:
- Housing: Aluminum alloy anti‑interference shell
- Circuit board: Multi‑layer FR‑4 PCB with power drive and over‑current protection components
- Connector: Gold‑plated backplane connector, field wiring high‑density terminal block
- Front panel: Flame‑retardant plastic with LED indicator window, IP20 protection grade
- Card‑type plug‑in structure for rack‑slot installation
Installation Requirements:
- Insert into I/O slot of Trusted main rack or expander rack, lock front‑panel screws
- Field output wiring uses shielded cables, separate from high‑voltage power lines
- Cabinet protective ground resistance ≤4 Ω
- Cabinet maintains good ventilation heat‑dissipation
- Field actuator load parameters must match per‑channel drive capacity of module
- Do not connect over‑load equipment directly to output channels
Application Scenarios:
- Solenoid valve driving for petrochemical ESD emergency shutdown system
- Field relay actuation for fire‑gas suppression safety system
- Safety interlock on‑off control for chemical reactor auxiliary equipment
- Emergency trip output for power‑plant safety instrumented system
- Actuator control for offshore platform safety protection system
Usage Notes:
- Hot‑swap operation only allowed under normal system health status
- Do not disassemble module housing
- Strictly follow per‑channel current‑load limit; prohibit over‑load driving
- Prevent field‑side short‑circuit damage to output channels
- After module replacement, verify every channel output action and fault‑diagnosis function
- Do not operate outside rated temperature range
