Description

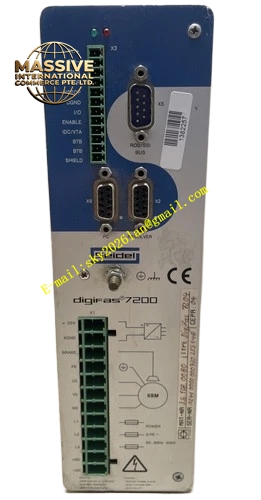

Kollmorgen DIGIFAS7200
Technical Specifications
- Operating Voltage: 220V AC (Supports a wide rated power supply voltage range of 80V to 400V AC)
- Input Frequency: 50Hz to 60Hz
- Output Frequency: Up to 30 kHz
- Current Rating: Up to 30A
- Max Torque: Rated at 250 Nm
- Operating Efficiency: Up to 95% under ideal working conditions
- Protection Class: IP20
- Operating Temperature Range: 0°C to +40°C
- Storage Temperature Range: -20°C to +60°C
- Relative Humidity: 5% to 95% (non-condensing)
Functional Features
- Advanced PWM Control: Utilizes advanced Pulse Width Modulation technology for precise and smooth motor operation.
- High-Efficiency Operation: Optimized energy conversion circuits maintain over 95% efficiency, reducing long-term energy consumption.
- Comprehensive Protection: Equipped with fuse protection, overload protection, and LED diagnostic displays to safeguard against electrical surges and abnormal currents.
- Versatile Interfaces: Includes analog and digital inputs/outputs, incremental encoder interfaces, SSI interfaces, and PC interfaces for seamless integration.
- Innovative Cooling: Features innovative cooling mechanisms to maintain optimal operating temperatures even under heavy loads.
- Multi-Protocol Support: Compatible with a wide range of industrial control systems and automation protocols.
Application Scenarios
- Metal Forming Equipment: Controls stamping mechanisms and high-precision motion in metal processing machinery.
- CNC Machinery: Provides precise positioning and speed control for computer numerical control machines.
- Robotics: Drives robotic joints and actuators requiring high accuracy and repeatability.
- Material Handling Systems: Manages conveyor and transport systems in automated warehouses.
- Food Processing: Drives conveying systems and packaging machinery with high reliability.
Performance Parameters
- Positioning Accuracy: Exceptional precision across a wide speed range.
- Dynamic Response: Fast response capability to handle sudden load changes and dynamic start-stop conditions.
- Reliability: Maintains high efficiency (>90%) over a five-year period without significant mechanical braking or major failures.
- Voltage Tolerance: Withstands voltage fluctuation deviations of ±10%.
Material Composition
Constructed with robust, industrial-grade materials and state-of-the-art electronic components. The sleek, compact housing is designed to withstand harsh industrial conditions, including dusty and high-vibration environments, without compromising performance.
Structural Features
- Compact Design: Dimensions of 275mm (length) × 235mm (width) × 71mm (thickness) with a weight of approximately 2.1kg.
- IP20 Enclosure: Effectively blocks solid particles larger than 12mm to protect internal circuits.
- Three-Phase Connector: Features a dedicated three-phase electrical connector for optimal power delivery.
- User-Friendly Interface: Intuitive front panel with LED displays for real-time status monitoring and diagnostics.
