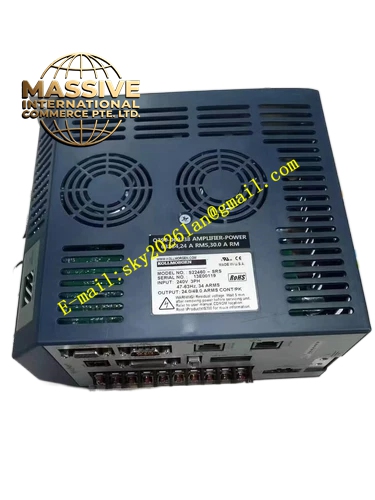

Kollmorgen S22460
Kollmorgen S22460 - Image 2

Kollmorgen S22460

Product Introduction
S22460 is a high-performance servo drive from Kollmorgen’s Servostar S200 series, designed for precision motion control in industrial automation. The drive uses full digital vector control technology and integrates multi-protocol communication architecture, supporting position, speed, torque, and multi-axis synchronous control modes.

Request Quote
Category:

Description

Kollmorgen S22460

Technical Specifications

  • Input Voltage: 120/240VAC and 20-90VDC
  • Feedback Resolution: 24-bit high-resolution
  • Current Loop Bandwidth: 3 to 5 kHz
  • Velocity Loop Bandwidth: 800 Hz
  • Control Modes: Position, speed, torque, and synchronous control
  • Communication Interfaces: EtherCAT, CANopen, RS-232/485, SynqNet (optional)
  • Protection Rating: IP20 (cabinet installation)
  • Certifications: UL 508C, CE, EN50178, EN61800-C, Semi F47

Functional Features

  • High Dynamic Performance: 800Hz velocity loop bandwidth with sub-millisecond dynamic response
  • 24-bit High-Resolution Feedback: Provides precise position and speed control
  • Multi-Protocol Communication: Supports EtherCAT, CANopen, RS-232/485, and optional SynqNet
  • Multiple Control Modes: Position, speed, torque, and synchronous control
  • Traditional ±10VDC Command: Supports analog command input
  • Encoder Following and Pulse-Direction: Multiple command input options
  • SERCOS Interface: Optional SERCOS communication support
  • Optically Isolated I/O: Protects against electrical noise and damage
  • Positive Locking Connectors: Vibration-resistant secure connections
  • Comprehensive Fault Protection: Overcurrent, overvoltage, undervoltage, overtemperature, and short-circuit protection

Application Scenarios

  • Industrial Automation: Conveyor control, filling equipment, packaging machinery
  • Robotics: Robot motion and position control
  • CNC Machine Tools: High-precision tool and workpiece positioning
  • Medical Equipment: Precision imaging, surgical robots, laboratory equipment
  • Semiconductor Manufacturing: Wafer handling, precision positioning
  • Electronic Assembly: PCB assembly, precision soldering

Performance Parameters

  • Velocity Loop Bandwidth: 800 Hz
  • Current Loop Bandwidth: 3 to 5 kHz
  • Feedback Resolution: 24-bit
  • Dynamic Response: Sub-millisecond
  • Control Modes: Position, speed, torque, synchronous

Material Composition
Compact metal housing with integrated digital signal processor, IGBT power modules, and optically isolated I/O circuits.

Structural Features

  • Compact Design: Space-saving form factor
  • Multiple Communication Ports: EtherCAT, CANopen, RS-232/485, optional SynqNet
  • IP20 Protection: Suitable for control cabinet installation
  • LED Status Indicators: Display operating status and fault information
