Description

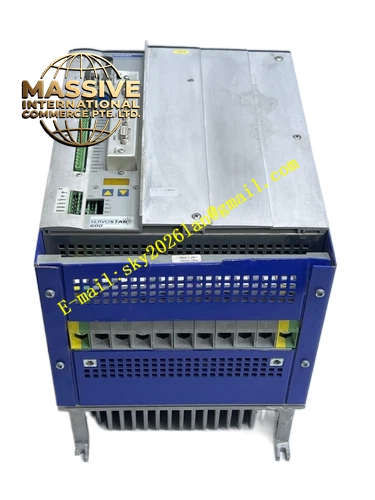

Kollmorgen S67001
Technical Specifications
- Product Series: SERVOSTAR 600 (S600)
- Input Voltage: 230V to 480V AC, direct mains operation
- Output Current Range: 1A to 70A (depending on specific model variant)
- Integrated Regeneration Circuit: Up to 20A
- Integrated Power Filter: Up to 20A, all shielded wiring connected directly to the amplifier
- Cabinet Compatibility: Up to 20A models suitable for 300mm switch cabinets
- Certifications: CE, UL, cUL
- Configuration Software: Danaher Motion setup software via PC
Functional Features
- Direct Mains Operation: Operates directly from 230V to 480V AC supply without external transformers
- Integrated Regeneration Circuit: Built-in regeneration handling up to 20A eliminates the need for external braking components in many applications
- Integrated Power Filter: Built-in EMC filter ensures compliance with electromagnetic compatibility requirements
- Integrated Position Controller: Onboard position controller with memory for storing up to 256 motion tasks
- Intelligent Positioning Tasks: Supports motion profile control, positioning control, vibration limiting control, linked multi-task control, relative motion control, and multiple homing modes
- Encoder Emulation: Selectable incremental or absolute encoder emulation output
- Multi-Feedback Support: Compatible with resolvers (up to 36 poles), ComCoder, incremental/sine encoders, sine encoders with EnDat/HIPERFACE/BISS, and incremental encoders (A quadrature B)
- Stepper Controller Interface: Integrated interface for stepper controllers, master-slave operation, and electronic gearing
Application Scenarios
- CNC Machine Tools: High-precision positioning and speed control for cutting, milling, and grinding
- Industrial Robotics: Joint drive control for robotic arms and manipulators
- Packaging Machinery: Coordinated motion control for filling, sealing, and labeling systems
- Semiconductor Manufacturing: Precision wafer handling and positioning
- Printing Equipment: Print registration and web tension control
- Multi-Axis Systems: Complex coordinated motion in automated production lines
Performance Parameters
- Current Range: 1A to 70A output current depending on model variant
- Voltage Range: 230V to 480V AC input
- Motion Task Storage: 256 programmable motion tasks
- Regeneration Capacity: Up to 20A integrated
Material Composition
High-quality industrial electronic components with IGBT power modules, housed in a robust metal enclosure designed for DIN rail or panel mounting in control cabinets.
Structural Features
Compact design suitable for 300mm switch cabinets (up to 20A models). Standardized connectors for power supply, motor output, feedback devices, control signals, and communication interfaces. The integrated power filter and regeneration circuit reduce external component requirements.
