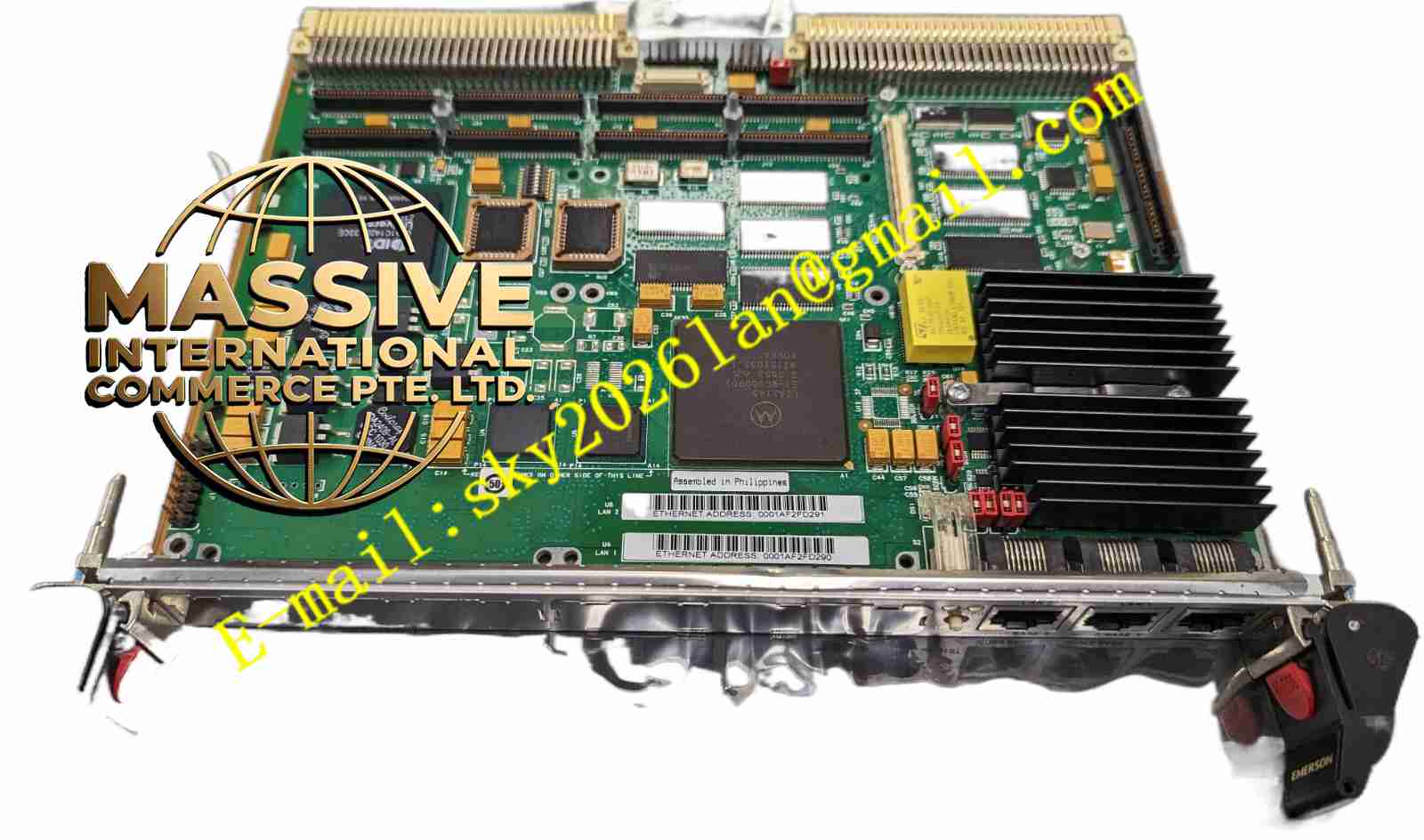

Motorola MVME31006E-1152
Technical Specifications
- Processor: MPC8540 PowerQUICC III (667 MHz).
- Memory: Supports up to 256MB DDR SODIMM.
- Storage: 64MB or 128MB Flash (model dependent).
- Networking: Dual Gigabit Ethernet and one Fast Ethernet.
Functional Features
- High-Speed Processing: PowerQUICC III provides exceptional integer and floating-point performance.
- Advanced Networking: Triple Ethernet interfaces support high-bandwidth data transfer.
- Modern I/O: Includes Serial ATA, USB 2.0, and multiple RS232 ports.
- Expansion: Dual 64-bit/100 MHz PMC slots.
Application Scenarios
Ideal for next-generation DCS, telecom routing, medical imaging, and high-throughput test platforms.
Performance Parameters
- VME Interface: 2eSST VMEbus for maximum backplane bandwidth.
- PCI Bus: PCI-X local bus for high-speed peripheral communication.
Material Composition
Multi-layer high-Tg PCB with BGA processors and industrial-grade DDR memory.
Structural Characteristics
Standard single-slot VME form factor with front panel RJ45 and serial ports. Rear I/O requires an RTM.
Working Principle
The MPC8540 manages DDR memory and PCI-X peripherals internally, utilizing the TSI148 bridge for high-speed 2eSST VME communication. Boots from onboard Flash.
Installation Requirements
Requires a 2eSST-compatible VME backplane. Install RTM if rear I/O is needed.
Usage Precautions
Never hot-swap the module. Ensure adequate cooling for the high-performance processor. Handle DDR SODIMM with ESD precautions.
