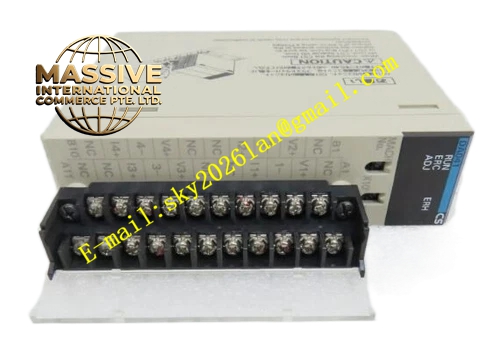

OMRON CS1W-DA041

OMRON CS1W-DA041

Product Introduction: The CS1W-DA041 is a 4-channel analog output unit for the OMRON CS1 series PLC. It converts digital data from the CPU into analog signals (voltage or current) to control field devices such as actuators, valves, and variable frequency drives.

Request Quote
Category:

Description

OMRON CS1W-DA041

Technical Specifications:

  • Brand: OMRON
  • Model: CS1W-DA041
  • Product Type: Analog Output Unit
  • Compatible System: CS1 Series PLC
  • Number of Outputs: 4 channels
  • Output Signal Range:
    • Voltage: 1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V
    • Current: 4 to 20 mA
  • Resolution: 1/4000 (12-bit)
  • Accuracy: ±0.3% of full scale (Voltage), ±0.5% (Current) at 25°C
  • D/A Conversion Time: 1.0 ms/point max.
  • Isolation: Photocoupler isolation between I/O and PLC
  • Power Consumption: 200 mA at 5 VDC
  • Dimensions: 35 mm (W) × 130 mm (H) × 100 mm (D)

Functional Features:

  • 4-channel analog output with selectable ranges per channel
  • High-resolution conversion (1/4000)
  • Output hold function (CLR, HOLD, MAX)
  • Break detection function
  • Detachable terminal block for easy wiring

Application Scenarios:

  • Process control (valve control, actuator positioning)
  • Motor speed control (VFD reference)
  • Pressure and flow control
  • Industrial automation systems

Performance Parameters:

  • Output Channels: 4
  • Resolution: 12-bit (1/4000)
  • Conversion Speed: 1.0 ms per point
  • Accuracy: ±0.3% (Voltage)

Material Composition:

  • Precision digital-to-analog converter ICs
  • Multi-layer printed circuit board
  • Plastic housing
  • Detachable terminal block

Structural Features: The unit features a compact 35mm width design. The front panel includes a detachable terminal block for field wiring and settings for range selection.

Working Principle: The unit receives digital data from the CPU via the backplane. This data is converted into precise analog signals (voltage or current) by high-speed DACs. The analog signals are then output to control external devices.

Installation Requirements:

  • Mount on CS1 series CPU rack or expansion rack.
  • Connect field wiring to the detachable terminal block.
  • Use shielded cables for analog signals to reduce noise.
  • Separate analog signal cables from power lines.

Usage Notes:

  • Verify the output signal range matches the connected device.
  • Ensure the load resistance is within the permissible range.
  • Do not short-circuit current outputs.
