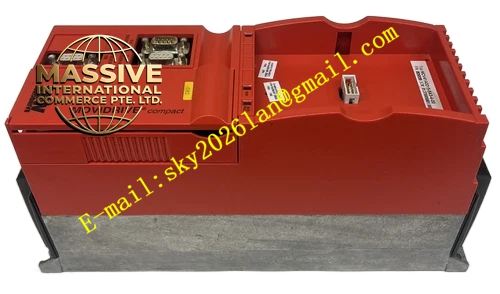

SEW MCV40A0040-5A3-4-0T
Technical Specifications: Rated motor power: 4.0kW Three-phase input voltage: 380VAC – 500VAC, 50-60Hz Control modes: VFC open-loop flux control, CFC closed-loop current flux vector control Communication: Binary terminal control, supports optional fieldbus expansion cards Built-in brake chopper, four-quadrant operation Protection class: IP20 Ambient operating temperature: 0℃ ~ +45℃ Cooling method: Forced air cooling Separate 24VDC control power supply, keeps parameters and communication available after main circuit power loss
Functional Features: Vertical screw fastened installation inside electrical cabinet, IP20 protection valid only inside cabinet Complete hardware protection including overcurrent, overvoltage, undervoltage, overheating, earth fault, output short-circuit and encoder signal failure Closed-loop driving for encoder equipped asynchronous motors 6 isolated digital inputs, 3 digital outputs including 1 relay output, PTC motor temperature detection supported Automatic motor parameter identification, parameter backup and restore Built-in absolute and relative positioning, electronic gearing, electronic cam functions Integrated STO Safe Torque Off safety function Complete fault log and operating data storage Built-in A-class EMC input filter DC bus interconnection terminals for energy sharing between multiple drives Side expansion slots for fieldbus and encoder option cards Supports DBG60B operator panel and MOVITOOLS software for commissioning and diagnosis
Application Scenarios: Medium load packaging machine servo axis Cutting machine positioning servo drive Printing line roller synchronization Automated slide table conveying system Medium load rotary indexing table positioning
Performance Parameters: Output frequency range: 0Hz – 600Hz Overload capacity: 150% rated current for continuous 60 seconds Speed control accuracy ±0.01% under CFC closed-loop mode Multi-step speed function with independent adjustable acceleration and deceleration ramps, S-curve supported Torque limiting and pure torque control mode High-speed encoder signal sampling Compatible with incremental encoder and HIPERFACE absolute encoder
Material Composition: Cold rolled steel sheet housing with powder-coating anti-corrosion treatment Multi-layer industrial grade PCB control board, IGBT inverter power module, NTC temperature sensor Gold-plated signal terminals, thickened high-conductivity copper power terminals Flame-retardant plastic insulating brackets, high-voltage DC bus electrolytic capacitors Metal heat sink with built-in cooling fan assembly
Structural Characteristics: Vertical modular cabinet mounting with heavy-duty screw holes on rear panel Front panel three-color LED indicators for running, fault and bus communication status High-current power terminals in upper zone, control signal terminals in lower zone Side expansion slots for option cards Physical isolation between power cavity and signal cavity to suppress electromagnetic interference Detachable terminal blocks for convenient wiring and maintenance DC bus interconnection terminals for multi-drive parallel connection
Working Principle: Three-phase AC power enters main circuit terminals. Internal rectifier bridge converts alternating current into stable DC bus voltage. IGBT inverter module outputs continuously adjustable three-phase AC to drive asynchronous motor. Encoder feeds rotor speed and position signals back to control board. CFC closed-loop vector algorithm continuously calculates motor flux and output torque, dynamically adjusts output voltage and frequency to realize high-precision speed and position closed-loop regulation. Regenerative energy generated during deceleration is dissipated by built-in brake chopper into external brake resistor. When fault occurs, hardware protection circuit immediately cuts power output, lights fault indicator and stores fault information. Multiple drives share regenerative energy through DC bus interconnection terminals.
Installation Requirements: Vertical upright installation only inside closed electrical cabinet, inverted or horizontal installation forbidden Reserve sufficient upper and lower cooling clearance, keep cooling fan inlet and outlet unobstructed Separate routing for power cables and signal cables, all signal cables use shielded cable Three-phase input voltage must match nameplate rating Cabinet environment free of dust, corrosive gas and condensed water vapor PE protective earth terminal firmly connected to cabinet ground busbar Encoder cable uses SEW dedicated shielded cable Metal shielding cover must be fitted after option card installation
Precautions for Use: Wait at least 10 minutes after power-off for full DC bus capacitor discharge before opening the cover for maintenance Verify three-phase input voltage balance before power-on Complete full motor identification during commissioning No parallel capacitors or surge absorbers on the inverter output side Clean cooling fan and heat sink dust regularly to avoid overtemperature shutdown Implement ESD protection when plugging option cards and control components External brake resistor must match drive rating, brake terminal short-circuit prohibited STO safety circuit wiring strictly follows the official safety manual
