Product Introduction:

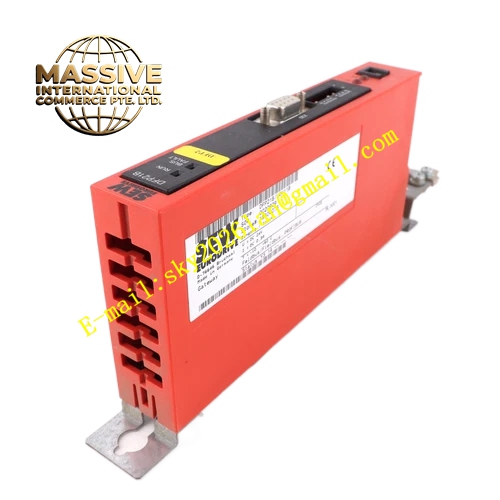

The MCV41A0015-5A3-4-00 is a compact drive inverter from SEW-EURODRIVE’s MOVIDRIVE compact series, designed for field-oriented control of asynchronous motors with or without encoder feedback. The “MCV” designation indicates it supports both VFC (Voltage Flux Control) and CFC (Current Flux Control) operating modes. The “41A” identifies the series platform with PROFIBUS-DP fieldbus interface. The “0015” denotes a recommended motor power of 1.5 kW. The “5A3” indicates three-phase AC 380–500V supply voltage with Class A radio interference suppression filter. The “4” indicates four-quadrant operation with integrated brake chopper. The “00” suffix denotes the standard version. This unit belongs to the Size 1 form factor, featuring a compact modular design that integrates drive control, logic functions, and safety features into a single housing.

Request Quote
Category:

Description

SEW MCV41A0015-5A3-4-00

Technical Specifications:

  • Brand: SEW-EURODRIVE
  • Series: MOVIDRIVE compact MCV41A
  • Size: Size 1
  • Recommended Motor Power: 1.5 kW (VFC mode)
  • Supply Voltage: Three-phase AC 380–500V, 50/60 Hz
  • Control Modes: VFC (Voltage Flux Control) + CFC (Current Flux Control)
  • Encoder Feedback: Required for CFC mode
  • Operating Quadrants: 4Q (integrated brake chopper)
  • Fieldbus Interface: PROFIBUS-DP (integrated)
  • Radio Interference Suppression: Class A filter built-in
  • Protection Class: IP20
  • Operating Temperature: 0°C to +50°C
  • Certifications: CE, UL/cUL

Functional Features:

  • Dual-Mode Control: Supports both VFC open-loop and CFC closed-loop vector control for flexible application adaptation
  • Field-Oriented Control (FOC) Algorithm: Delivers high torque at low speeds with precise flux and torque regulation
  • IPOS+ Integrated Positioning System: Enables autonomous motion sequence control within the inverter, reducing dependency on external PLCs
  • Comprehensive Protection Functions: Overcurrent, overvoltage, undervoltage, overheating, ground fault, motor stall, and stall prevention
  • STO Safety Function: Safe Torque Off compliant with SIL3/PLe safety standards
  • Modular Removable Design: Fan, power unit, and control board are independently replaceable
  • SD Card Parameter Copy: One-touch parameter replication for batch commissioning of multiple units
  • Built-in PID Controller: Supports closed-loop regulation for pressure, temperature, and flow control applications
  • PROFIBUS-DP Communication: Integrated fieldbus for seamless integration into industrial automation networks

Application Scenarios:

  • Small-power fan and pump variable speed control
  • Light-duty conveyor belts and material handling equipment
  • Mixing and blending equipment
  • Textile and packaging machinery
  • HVAC systems
  • Water treatment equipment
  • Small-scale automated production lines

Performance Parameters:

  • Overload Capacity: 150% rated current for 60 seconds (175% for 2 seconds)
  • Output Frequency Range: 0–500 Hz
  • PWM Switching Frequency: Up to 32 kHz for low-noise motor operation
  • Speed Range: -5000 to +5000 rpm
  • Speed Resolution: 0.2 rpm
  • Voltage Tolerance: ±10% mains voltage fluctuation
  • Minimum Braking Resistor Value: As specified per size rating

Material Composition:

  • Industrial-grade IGBT power modules
  • Conformal-coated circuit boards for dust and moisture protection
  • Aluminum heat sink for efficient thermal dissipation
  • Integrated EMC filter components
  • Steel housing with powder-coated finish

Structural Features:

  • Compact cabinet-mount structure (Size 1)
  • Modular removable design with separable power and control sections
  • Power supply terminals (L1, L2, L3) — separable connector X1
  • Motor output terminals (U, V, W) — connector X2
  • Braking resistor terminals (+R, -R) and PE ground — separable connector X3
  • DC link connection (-U) — terminal X4
  • Electronics terminal strip X10 for control signal interfacing
  • PROFIBUS-DP connection (9-pole Sub-D socket) — X30
  • Incremental encoder simulation output / external encoder input (9-pole Sub-D) — X14
  • Motor encoder input (9-pole Sub-D) — X15
  • Slot for DBG keypad or USS21A/USB11A option
  • LED status and diagnostic indicators
  • Shield clamp for power section cable grounding

Working Principle:
The inverter converts three-phase AC input through a rectifier into DC, stored in the DC bus capacitors, then synthesizes variable-frequency PWM output via IGBT switching. In VFC mode, the algorithm continuously calculates a complete motor model to independently regulate flux and electromagnetic torque without encoder feedback. In CFC mode, encoder feedback enables closed-loop current control, where the algorithm decouples the motor’s flux and torque components in real time for independent regulation.

Installation Requirements:

  • Mount vertically inside a control cabinet with adequate ventilation
  • Maintain minimum clearance above and below the unit for airflow
  • Use shielded power and motor cables with 360° shield grounding
  • Motor cable phase sequence must match U-V-W terminal markings
  • Connect braking resistor to dedicated braking terminals (+R, -R) for dynamic braking
  • Ambient temperature must remain within 0°C to +50°C
  • Connect encoder cable to the encoder interface (X15) when operating in CFC mode
  • PROFIBUS-DP cable connects to X30 for fieldbus communication

Usage Precautions:

  • Perform motor initialization after connecting a new motor
  • Use MOVITOOLS MotionStudio software for parameter configuration and commissioning
  • Verify supply voltage stability within ±10% tolerance before operation
  • Never connect or disconnect motor cables while the inverter is energized
  • Monitor fault codes via integrated LED display or MOVITOOLS software
  • Clean heat sink dust regularly; remove immediately if accumulation exceeds 2 mm
  • Confirm grounding resistance is less than 1 Ω
  • Wait at least 5 minutes after disconnecting main power to ensure capacitor discharge before maintenance
  • At 500V supply, system and output current must be derated by 20%
