Product Introduction:

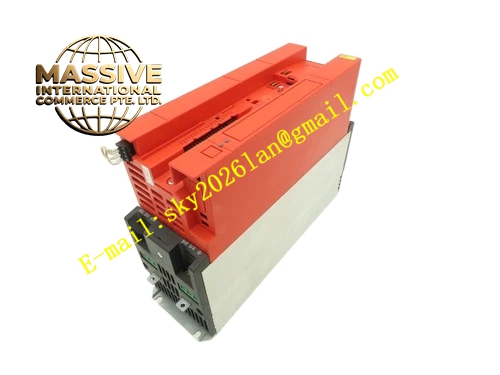

The MCV41A0040-5A3-4-00 is a compact drive inverter from SEW-EURODRIVE’s MOVIDRIVE compact series, supporting field-oriented control of asynchronous motors. The “MCV” designation confirms VFC and CFC dual-mode capability. The “41A” identifies the platform with PROFIBUS-DP. The “0040” denotes a recommended motor power of 4.0 kW. The “5A3” indicates three-phase AC 380–500V supply with Class A filter. The “4” indicates four-quadrant operation with brake chopper. The “00” suffix is the standard version. This unit belongs to the Size 1 form factor, representing the upper end of the Size 1 power range.

Request Quote
Category:

Description

SEW MCV41A0040-5A3-4-00

Technical Specifications:

  • Brand: SEW-EURODRIVE
  • Series: MOVIDRIVE compact MCV41A
  • Size: Size 1
  • Recommended Motor Power: 4.0 kW (VFC mode)
  • Supply Voltage: Three-phase AC 380–500V, 50/60 Hz
  • Control Modes: VFC + CFC
  • Encoder Feedback: Required for CFC mode
  • Operating Quadrants: 4Q (integrated brake chopper)
  • Fieldbus Interface: PROFIBUS-DP
  • Radio Interference Suppression: Class A filter built-in
  • Protection Class: IP20
  • Operating Temperature: 0°C to +50°C
  • Certifications: CE, UL/cUL

Functional Features:

  • Dual-Mode Control: VFC and CFC vector control
  • FOC Algorithm: High torque at low speeds
  • IPOS+ Integrated Positioning: Autonomous motion control
  • Comprehensive Protection: Overcurrent, overvoltage, undervoltage, overheating, ground fault, stall
  • STO Safety Function: SIL3/PLe
  • Modular Design: Replaceable components
  • SD Card Parameter Copy: Batch commissioning
  • Built-in PID Controller: Process loop control
  • PROFIBUS-DP Communication: Integrated fieldbus

Application Scenarios:

  • Medium-power fan and pump drives
  • Conveyor and material handling systems
  • Agitator and mixer drives
  • Textile and packaging machinery
  • HVAC systems
  • Wastewater treatment
  • Machine tool drives
  • Automated assembly lines

Performance Parameters:

  • Overload Capacity: 150% rated current for 60 seconds
  • Output Frequency Range: 0–500 Hz
  • PWM Switching Frequency: Up to 32 kHz
  • Speed Range: -5000 to +5000 rpm
  • Speed Resolution: 0.2 rpm
  • Voltage Tolerance: ±10%

Material Composition:

  • Industrial-grade IGBT power modules
  • Conformal-coated circuit boards
  • Aluminum heat sink
  • Integrated EMC filter
  • Powder-coated steel housing

Structural Features:

  • Size 1 compact cabinet-mount structure
  • Modular removable design
  • Power supply terminals (L1, L2, L3) — X1
  • Motor output terminals (U, V, W) — X2
  • Braking resistor terminals (+R, -R) and PE — X3
  • DC link (-U) — X4
  • Electronics terminal strip X10
  • PROFIBUS-DP (9-pole Sub-D) — X30
  • Encoder simulation output (9-pole Sub-D) — X14
  • Motor encoder input (9-pole Sub-D) — X15
  • DBG keypad / option slot
  • LED indicators
  • Shield clamp

Working Principle:
AC-to-DC rectification, DC bus storage, IGBT PWM synthesis. VFC mode uses internal motor model; CFC mode uses encoder feedback for closed-loop vector control.

Installation Requirements:

  • Vertical cabinet mounting with ventilation
  • Shielded cables with 360° grounding
  • Phase sequence matching
  • Braking resistor for 4Q operation
  • Temperature 0°C to +50°C
  • Encoder for CFC mode
  • PROFIBUS-DP to X30

Usage Precautions:

  • Motor initialization after connection
  • MOVITOOLS MotionStudio commissioning
  • Voltage stability within ±10%
  • No live cable operations
  • Regular heat sink cleaning
  • Grounding resistance below 1 Ω
  • 5-minute discharge wait
  • 20% derating at 500V
